Product Introduction
Multiple sensors can be optionally configured, including gas sensors, pressure sensors, liquid level sensors, temperature and humidity detection, and switch quantity detection, which can be optionally configured according to user needs. SKA/NE-301 Detector
Can connect to mobile phoneModify instrument parameters via APP. Small size, high integration, convenient for on-site installation.
The on-site LCD displays real-time information such as the current gas value, alarm threshold, storage interval, reporting interval, and current time.
Low power consumption feature, powered by battery, defaultCollect data once every 30 minutes, report data once every 24 hours; battery life not less than 3 years.
Communication method optional4G, NB-iot or LORA three methods, instrument and equipment data can be connected to third-party platforms.
The platform can remotely modify alarm thresholds, reporting collection frequency, calibration and other parameters.
Built-in large-capacity memory, each channel can store100,000 data records, ensuring data integrity and traceability.
When instrument data collection is abnormal, immediately activate the alarm mechanism.SKA/NE-301Detector

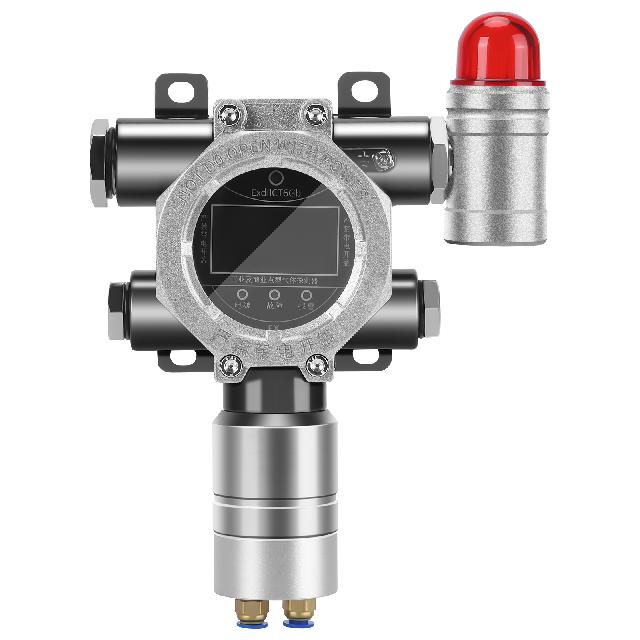

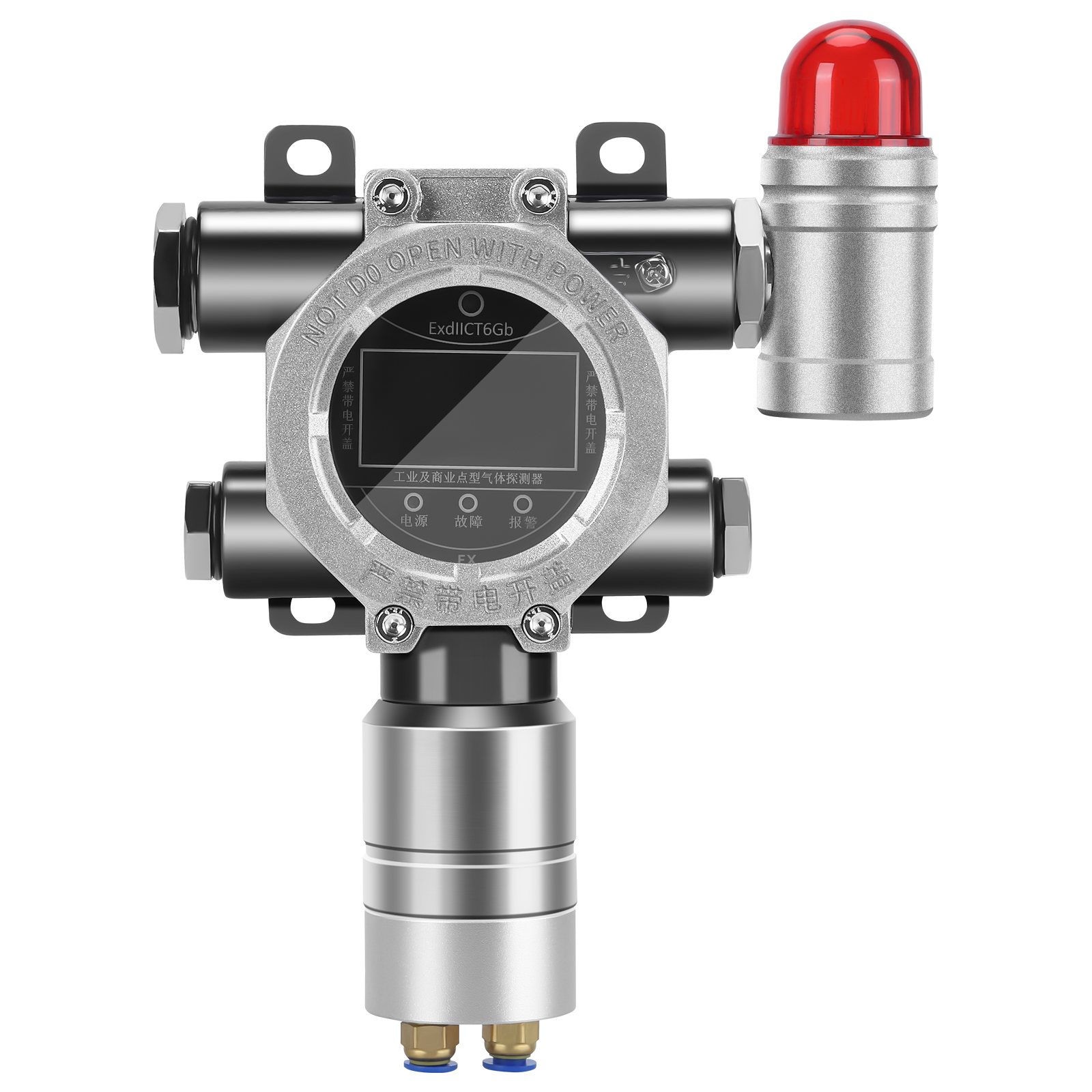

The detector is an intelligent gas detector using high-performanceMCU microcomputer technology intelligent gas detector, the product adopts an integrated modular design, integrating a high-precision gas sensor module, data processing unit and wireless communication function, and can be optionally equipped with a high-performance pressure sensor or liquid level sensor. It is designed with excellent low-power technology, featuring power saving, intuitive display, good repeatability, long service life, easy installation, simple maintenance, and convenient operation. It is suitable for gas detection, static/dynamic pressure detection, liquid level detection and data analysis in multiple scenarios. Combined with system software, it can realize statistical, query, backup and other maintenance operations on gas/pressure and other concentration information at various monitoring points on site, making it convenient for inspection personnel to analyze historical data and estimate the safety risks of on-site equipment. It is suitable for data collection of unattended equipment, confined space operations, etc., greatly improving
The real-time nature of safety detection in equipment use reduces equipment use risks....
Detection gas DetectableAny 1 of 600 gases + temperature and humidity; optional pressure and liquid level detection
Gas range Refer to common gas detection ranges
Gas detection principle Electrochemical, infrared,PIDlaser, piezoresistive effect, ultrasonic, etc.;
Display unit ppm、mg/m3、ppb、pphm、%VOL、%LEL(Partially switchable)
分辨率 ≤ one-thousandth of the range
Repeatability ≤±3%FS
Response time Refer to national standardsGB12358-2024
Detection method Diffusion type Flow-through type
Accuracy ≤±3%FS
Main Application Areas
- Chemical Plants — Monitor allyl alcohol and other toxic gases in production areas to ensure worker safety and regulatory compliance.
- Petrochemical Refineries — Detect flammable and toxic gas leaks in refining processes, preventing accidents and downtime.
- Confined Spaces — Ensure safe entry by continuously monitoring gas levels in tanks, sewers, and underground facilities.
- Pharmaceutical Manufacturing — Track solvent vapors and hazardous gases during drug production to maintain a safe environment.
- Wastewater Treatment — Monitor toxic gases like hydrogen sulfide and allyl alcohol in treatment plants to protect personnel.
