High Sensitivity Bipolar Hall Switch Sensor - AH501

AH501 is a high sensitivity bipolar Hall switch chip designed based on BCDMOS technology. The chip includes temperature compensation, comparator, and output driver. In addition, mechanical stress has minimal impact on the magnetic parameters of the chip.

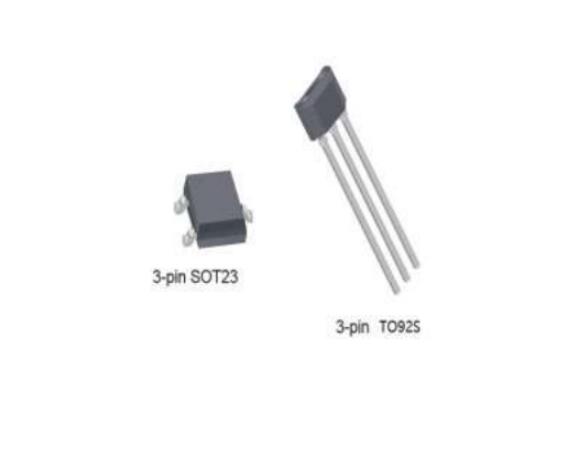

This series of sensor chips is suitable for industrial environments and automotive applications, with an ambient temperature range of -40°C to 150°C and a supply voltage range of 2.7V to 30V. AH501 is available in three package types: TO92S, SOT23(small), and SOT23-3L, all of which are RoHS compliant and have passed AEC-Q100 certification.

I.High Sensitivity Bipolar Hall Switch Sensor -Features of AH501:

AEC-Q100 Grade 0 Automotive Certification
Operating Voltage: 2.7V ~ 30V
ESD：±12kV
Strong mechanical stress suppression capability
Temperature range: -40°C ~ 150°C
Built-in negative temperature coefficient compensates for the decrease in magnetic flux density caused by temperature rise
Power pin with voltage protection
Suitable for automotive and industrial applications

II.High Sensitivity Bipolar Hall Switch Sensor -Applications of AH501:

Speed and RPM sensors

Tachometer sensors, flow sensors

DC motors, motor and fan control, robot control

Proximity sensors, position sensors

Safety belts, hoods, trunk locks

Sunroof/convertible/tailgate/liftgate actuation

Brake/clutch pedals

Electric Power Steering (EPS)

Transmission shifting

Wiper motors
