Product Introduction

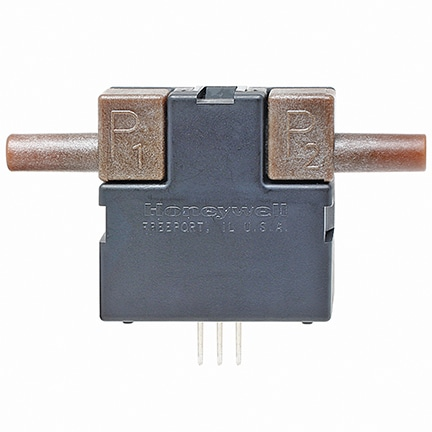

Honeywell Air Quality Mass Flow Sensor AWM3300V Description:
AWM3000 series low flow amplified air mass flow sensors. The AWM3000 series gas flow sensors have an output voltage of max 50mV; the AWM3000 series are gas mass flow sensors with 1-5V or 4-20mA output. Laser calibration ensures interchangeability. Measurement flow rate up to 1.0 LPM. Can withstand a maximum common mode pressure of 25 PSI.
Honeywell Air Quality Mass Flow SensorAWM3300V Features:
Laser trimming improves sensor interchangeability
Flow sensing up to 1.0 SLPM
Low differential pressure sensing
Honeywell Air Quality Mass Flow SensorAWM3300V Applications:
Damper control in heating, ventilation, and air conditioning systems
Gas analyzers
Low vacuum control
Process control
Medical ventilators and spirometers
Oxygen concentrators
Leak detectors
Ventilation masks
Anesthesia control
Gas metering
Gas chromatographs
Honeywell Air Quality Mass Flow SensorAWM3300V Parameters:
| Technical Specifications |
10.0±0.01VDC |
| Flow Range (Span) |
+1000sccm |
| Output Voltage |
5VDC |
| Zero Voltage |
1.00±0.1VDC |
| Zero Drift |
±25mV |
| Output Voltage Drift |
-5% reading +5% reading |
| Repeatability & Hysteresis Max |
±1% reading |
| Power Supply (VDC) |
8.0 10±0.01 15 |
| Response Time (ms) |
1.0 3.0 |
| Operating Temperature |
-25~85˚C |
| Storage Temperature (°C) |
-40~90˚C |
| Shock (5 drops, 6 axes) |
100g peak (5 drops, 6 axes) |
