Product Introduction
High measurement accuracy, up to within ±5%FS, repeatability up to within ±2%;

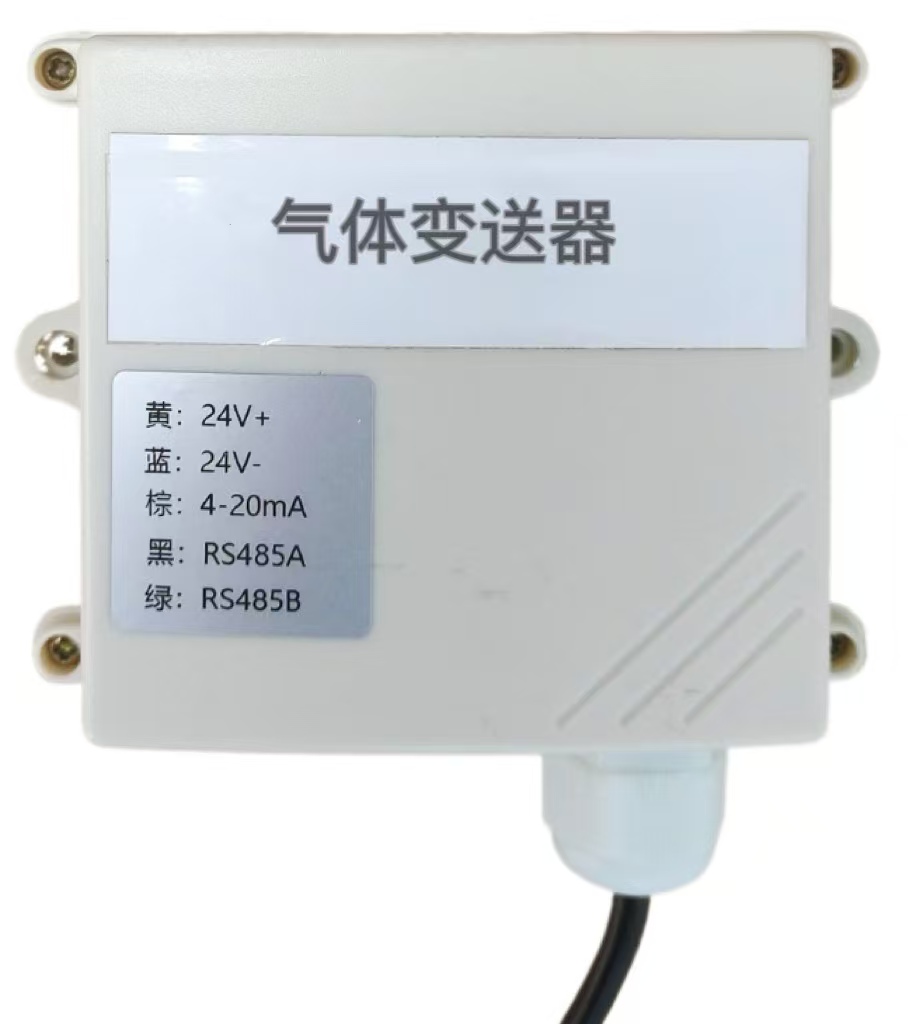

Adopts wall-mounted waterproof housing, easy to install, high protection level, can be applied to harsh on-site environments.
| Power supply | 10~30V DC |
| Output signal | 485、4~20mA、0~5V、0~10V |
| Power consumption | 485、WiFi：0.9W Analog: 0.12W |
| Temperature measurement range | -40℃~+80℃ |
| Humidity measurement range | 0~100%RH |
| Temperature Accuracy | ±0.5℃（25℃） |
| Humidity accuracy | ±3%RH（60%RH,25℃） |
| 工作温度 | -20~50℃ |
| Working humidity | 15~90%RH non-condensing |
| Pressure range | 90~110kPa |
| Stability | ≤2% signal value/month |
| Response time | 1000ppm：≤70s |
| Preheating Time | ≥5min |
| Zero Drift | 1000ppm：≤±10ppm |
| Repeatability | ≤2% |
| Service life | ≥24 months |
| Accuracy | ±5%FS |
| 分辨率 | 1ppm |
Main Application Areas
- Industrial Safety — Hydrogen leak detection in chemical plants, refineries, and industrial processes.
- Energy & Power — Monitoring hydrogen in fuel cells, batteries, and power generation systems.
- Environmental Monitoring — Tracking hydrogen levels in laboratories and confined spaces.
- Automotive — Hydrogen detection in fuel cell vehicles and refueling stations.
Keywords：hydrogen transmitter, gas sensor, H2 detector, industrial hydrogen sensor, hydrogen leak detection, hydrogen gas monitor, hydrogen transmitter AMT/RS-H2, hydrogen sensor module
