Product Introduction

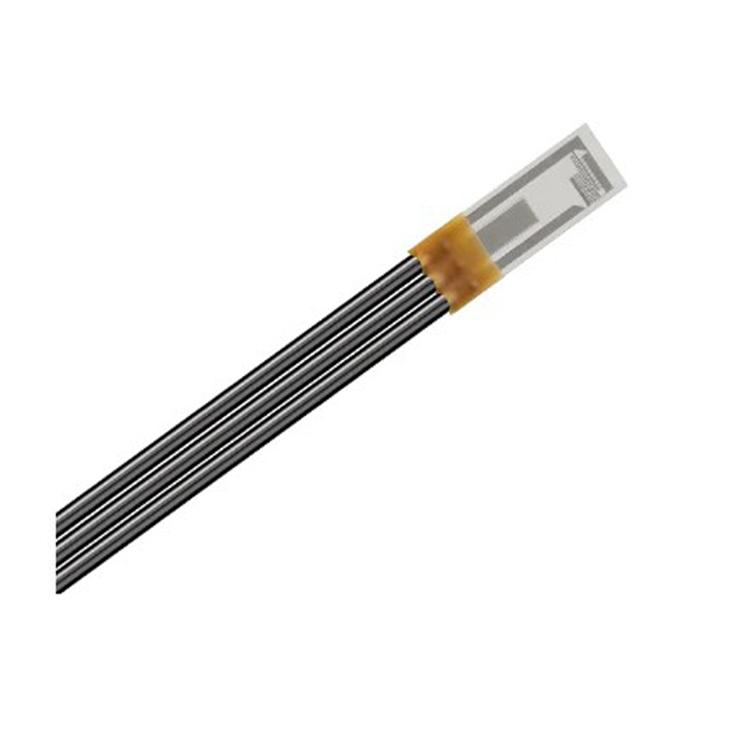

Swiss IST Mass Flow Sensor FS5.0.1L.195 Description:
IST's FS5.0.1L.195 is a thermal mass flow sensor used in various airflow applications. Thermal mass flow sensors use the principle of heat transfer to determine the flow rate of a fluid. As fluid passes over the sensor, heat is transferred from the sensor to the media. This relationship depends on the flow rate. As flow increases, more heat is transferred. By knowing the temperature of the media, the flow rate can be determined from the voltage compensation required to maintain a constant temperature difference.
Swiss IST Mass Flow Sensor FS5.0.1L.195 Features:
- · Simple signal processing and calibration
- · No mechanical moving parts
- · Good reproducibility
- · Excellent long-term stability
- · Bare sensor element resistance up to +450°C
- · Stable platinum technology.
- · Measurement range: 0 m/s to 100 m/s
- · Temperature range: -20°C to 150°C
- · 3 pins, AWG 30/7, stranded, PTFE insulated
- · Corresponding sensitivity 0.01 m/s, response time 2 seconds
Swiss IST Mass Flow Sensor FS5.0.1L.195 Applications:
Sensing and instrumentation, automotive, medical, automation and process control, system monitoring
Swiss IST Mass Flow Sensor FS5.0.1L.195 Parameters:
| Sensor Function |
Temperature and Humidity |
| Accuracy |
<3% |
| Mounting Type |
Through Hole |
| Number of Pins |
3 |
| Minimum Operating Temperature |
-20 °C |
| Maximum Operating Temperature |
+150 °C |
| Minimum Operating Supply Voltage |
2 V |
| Maximum Operating Supply Voltage |
5 V |
| Length |
6.9mm |
| Height |
0.6mm |
| Width |
2.4mm |
| Dimensions |
6.9 x 2.4 x 0.6mm |
