I. Product introduction of near-infrared online moisture meter - real-time non-contact moisture content detection equipment for production lines

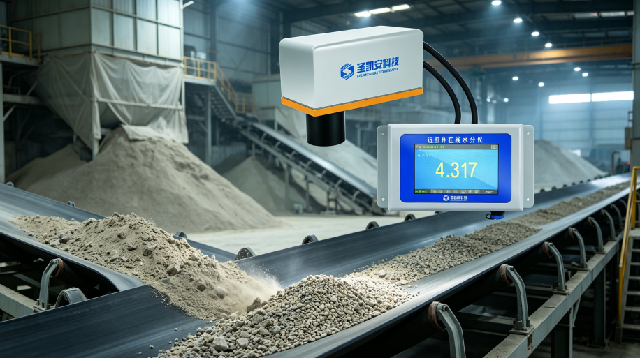

The near-infrared online moisture meter is aNon-contact, non-destructive, continuous real-time moisture content detection equipment, based on the principle of near-infrared spectral absorption-diffuse reflectance of water molecules. The probe is installed above belt conveyors, chutes, or dryer discharge outlets. No sampling or material contact is required, with millisecond-level real-time moisture reading. It can directly interface with PLC and DCS control systems to achieve closed-loop automatic control of drying and humidification processes, eliminating the lag of offline laboratory analysis, stabilizing product moisture content, and reducing drying energy consumption. It is a dedicated instrument for intelligent moisture management in industrial production lines.

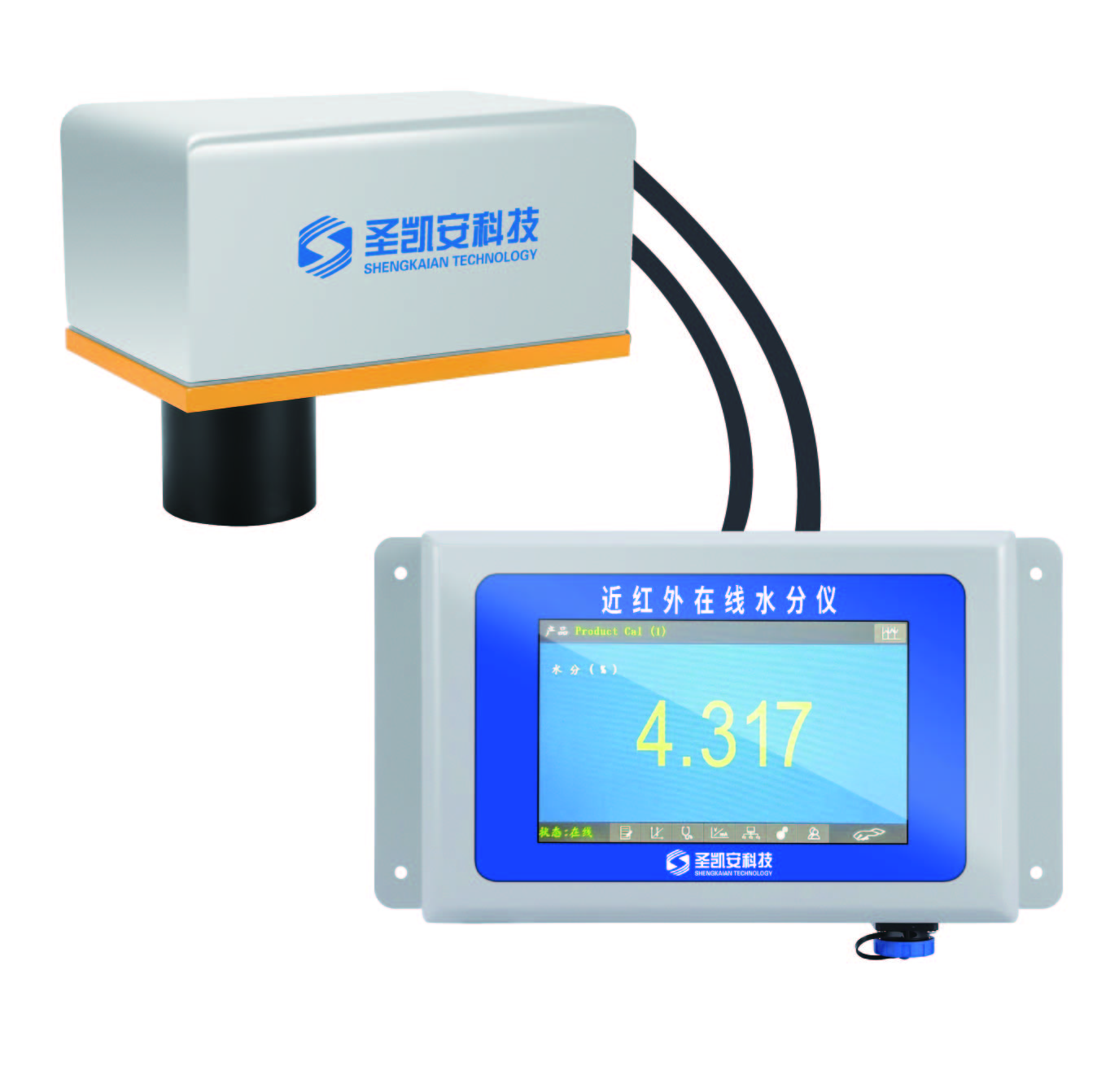

The entire equipment consists ofDetection probe + control host + signal cableComposed of three parts; supports multi-material curve storage, temperature and dust compensation, adapting to harsh workshop conditions such as dust, high temperature, and high humidity, with 24-hour continuous operation.
II. Main functions of near-infrared online moisture meter - real-time non-contact moisture content detection equipment for production lines
- Real-time continuous detection: Continuous measurement of dynamic materials on the production line, real-time display of moisture content, fast response speed, no detection delay
- Non-contact non-destructive measurement: Probe does not touch material, no sample loss, no material contamination
- Multi-material curve storage: Built-in multiple calibration curves, one-click switching between different materials, one machine for multiple uses
- Intelligent compensation algorithm: Temperature compensation, dust compensation, material color/thickness compensation, reducing environmental interference, stable measurement
- Real-time data output: 4-20mA analog, RS485-Modbus digital signal, interfacing with PLC, industrial control screens, and host computer systems. Can be linked to dryers for automatic adjustment of drying parameters, enabling closed-loop control of production line moisture.
- Data storage and traceability: Historical moisture data saved, report export, production quality records traceable
- Over-limit alarm: Sound and light alarm when moisture is above/below the set threshold, timely warning of non-conforming materials
- Touch operation: Host color touch screen, parameter settings, curve calibration, and real-time data viewing are simple and convenient
- Remote monitoring(Optional): Supports IoT cloud platform, remote viewing of production line moisture data via computer or mobile phone
- No frequent maintenance required: Probe window comes with purge interface (optional), reducing dust adhesion and cleaning frequency
III. Technical parameters of near-infrared online moisture meter - real-time non-contact moisture content detection equipment for production lines (general standard version, modifiable as needed)
Table
| Item | Parameter specifications |
|---|---|
| Measurement principle | Near-infrared diffuse reflectance spectroscopy |
| Measurement moisture range | 0-60% (customizable range 0-100% based on material) |
| Measurement accuracy | ±0.1% to ±0.5% (affected by material type and surface condition) |
| 分辨率 | 0.01% |
| Repeatability | ≤±0.2% |
| Response time | Millisecond level, 0-60s adjustable filtering time |
| Measurement spot diameter | Φ60‑90mm |
| Standard measurement distance | 250mm±100mm (installation height adjustable) |
| 信号输出 | 4‑20mA、RS485（Modbus‑RTU） |
| Calibration curves | Up to 100 material curve storage |
| Display screen | 7-inch industrial touch screen |
| Probe protection level | IP65 |
| Working environment temperature | 0℃‑50℃ |
| Ambient humidity | 5-90% RH, non-condensing |
| Power supply | AC220V 50Hz |
| 安装方式 | Bracket installation, above belt/chute |
| Explosion-proof version | Customizable explosion-proof type (Ex) |
Main Application Areas

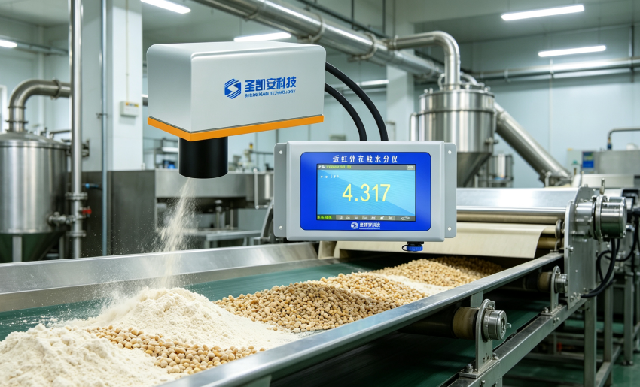

- Food Processing — Monitor moisture content in grains, powders, and baked goods during production to ensure quality and consistency.

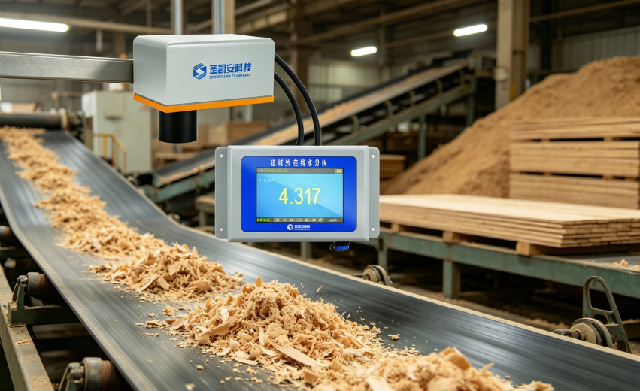

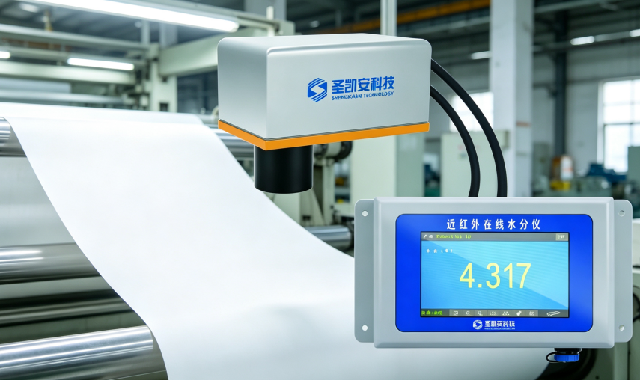

- Wood and Paper Industry — Measure moisture in wood chips, lumber, and paper rolls to optimize drying processes and prevent defects.
- Chemical and Pharmaceutical — Control moisture levels in powders, granules, and chemicals to maintain product stability and compliance.
- Textile Manufacturing — Ensure proper moisture content in fibers and fabrics to improve processing and final product quality.
