Product Introduction
■It adopts a highly sensitive gas detection probe and uses a high-performance signal acquisition circuit, which can accurately measure ppm-level O3 concentration, with stable signals and high accuracy.

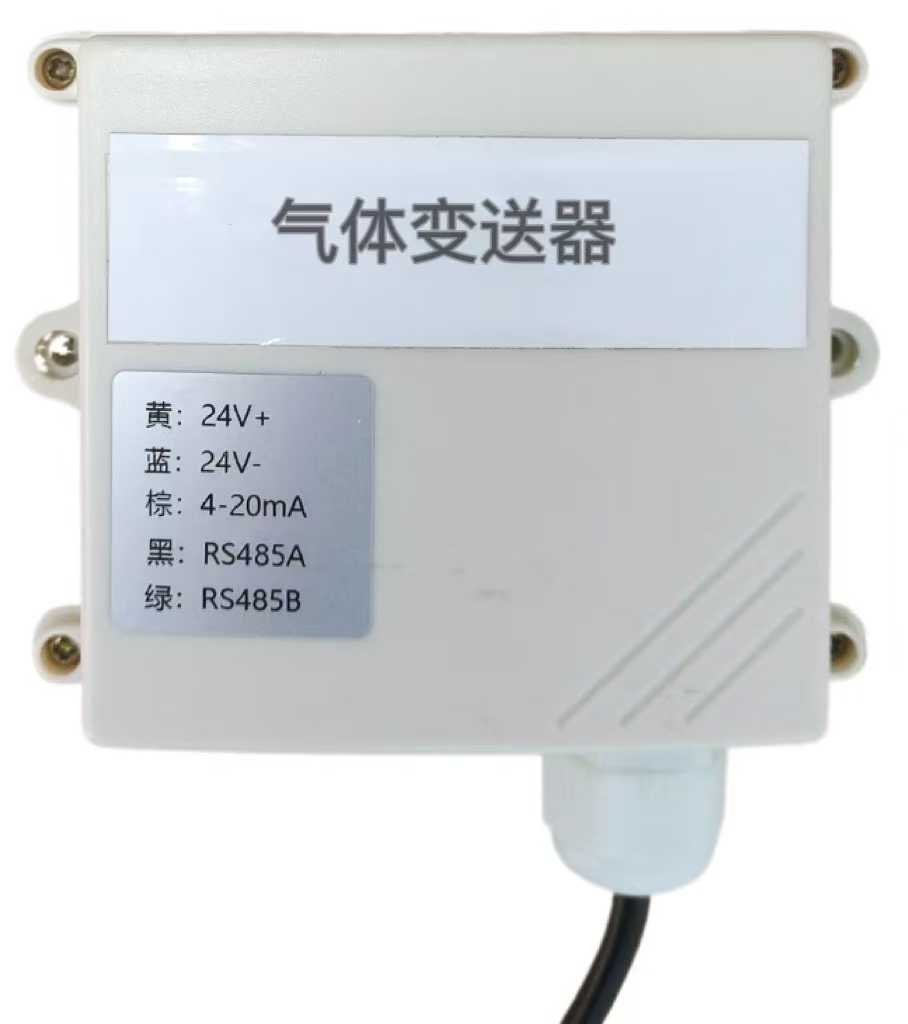

■The product adopts a wall-mounted waterproof enclosure, which is easy to install and has a high protection rating.
485 type:
| Power supply | 10~30V DC |
| Average Power Consumption | 0.1W |
| Output signal | 485（ModBus-RTU） |
| Temperature measurement range | -40℃~80℃ |
| Temperature Accuracy | ±0.5℃(25℃） |
| Humidity measurement range | 0~100%RH |
| Humidity accuracy | ±3%RH（60%RH,25℃） |
| Ozone measurement range | 0~10ppm、0~100ppm |
| 工作温度 | -10℃～55℃ |
| Working humidity | 15%RH-90%RH (non-condensing) |
| Operating Pressure | 91~111kPa |
| Data update time | 1s |
| Repeatability | ≤2% |
| Stability | ≤7% signal value/year |
| Response time | ≤180s |
| Preheating Time | 0~10ppm、0~100ppm：≥5min |
| 分辨率 | Range 0~10ppm: 0.01ppm Range 0~100ppm: 0.1ppm |
| Accuracy | 0~10ppm：±6%FS（@5ppm、25℃、50%RH） 0~100ppm：±6%FS（@50ppm、25℃、50%RH） |
| Zero Drift | ±1%FS |
Analog type:
| Power supply | 10~30V DC |
| Average Power Consumption | 0.12W |
| Output signal | 4-20mA、0-10V、0-5V |
| Ozone measurement range | 0~10ppm、0~100ppm |
| 工作温度 | -10℃～55℃ |
| Working humidity | 15%RH-90%RH (non-condensing) |
| Operating Pressure | 91~111kPa |
| Data update time | 1s |
| Repeatability | ≤2% |
| Stability | ≤7% signal value/year |
| Response time | ≤35s |
| Preheating Time | ≥5min |
| 分辨率 | Range 0~10ppm: 0.01ppm Range 0~100ppm: 0.1ppm |
| Accuracy | 0`10ppm：±6%FS（@5ppm、25℃、50%RH） 0`100ppm：±6%FS（@50ppm、25℃、50%RH） |
| Zero Drift | ±1%FS |
WIFI type:
| Power supply | 10~30V DC |
| Average Power Consumption | 0.1W |
| Temperature measurement range | -40℃~80℃ |
| Temperature Accuracy | ±0.5℃(25℃） |
| Humidity measurement range | 0~100%RH |
| Humidity accuracy | ±3%RH（60%RH,25℃） |
| Ozone measurement range | 0~10ppm、0~100ppm |
| 工作温度 | -10℃～55℃ |
| Working humidity | 15%RH-90%RH (non-condensing) |
| Operating Pressure | 91~111kPa |
| Data update time | 1s |
| Repeatability | ≤2% |
| Stability | ≤7% signal value/year |
| Response time | ≤180s |
| Preheating Time | 0~10ppm、0~100ppm：≥5min 0~1000ppm：≥24H |
| 分辨率 | Range 0~10ppm: 0.01ppm Range 0~100ppm: 0.1ppm |
| Accuracy | 0~10ppm：±6%FS（@5ppm、25℃、50%RH） 0~100ppm：±6%FS（@50ppm、25℃、50%RH） |
| Zero Drift | ±1%FS |
| WIFI communication parameters | 802.11b/g/n |
| Security | Security mode WEP/WPA-PSK/WPA2-PSK Encryption type WEP/TKIP/AES |
| Configuration tool | "Bluetooth Tap-to-Configure" |
Main Application Areas
- Water Treatment — Monitoring ozone concentration in water disinfection processes to ensure effective treatment and safety.
- Industrial Safety — Detecting ozone leaks in industrial environments to protect workers and prevent hazards.
- Air Quality Monitoring — Measuring ozone levels in ambient air for pollution control and environmental compliance.
- Food Processing — Controlling ozone levels in food sterilization and preservation to maintain quality and safety.
- Chemical Production — Monitoring ozone in chemical synthesis and oxidation processes for optimal reaction control.
