Product Introduction

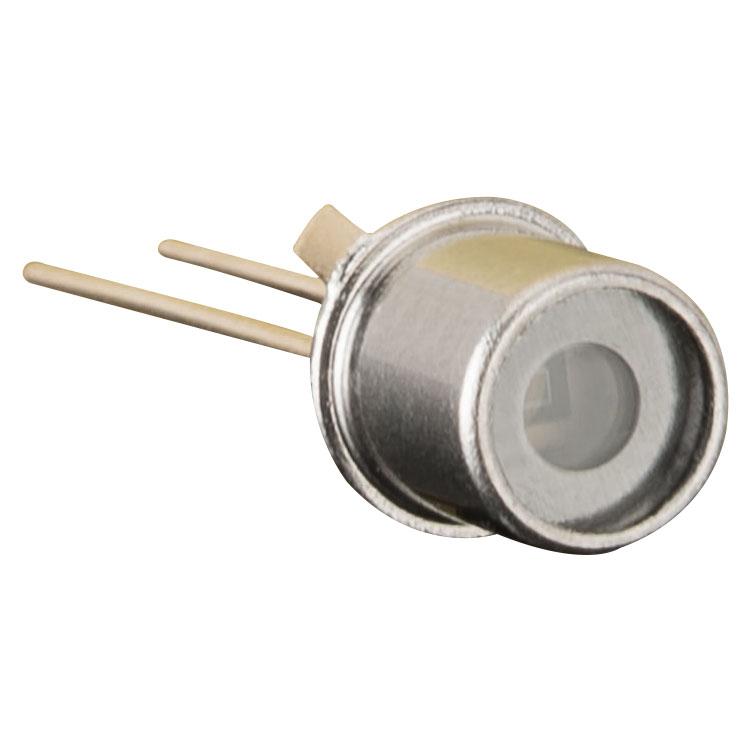

SiC UV Photodiode SG01L-A18 Features:
1. Made of silicon carbide (SiC) material
2. Suitable for UVA band
3. Effective detection area 1.0mm2
4. 10uW/cm2 peak irradiance generates approximately 3.7nA current
5. High chip stability (certified by German PTB)
About Silicon Carbide (SiC):
SiC can withstand extreme radiation hardness, has near-perfect visible blindness, low dark current, high-speed response, and low noise. These features make SiC an excellent material for visible-blind UV detectors. SiC detectors can operate at temperatures up to 170°C, and the temperature coefficient of the signal (responsivity) is very low, <0.1%/K. Due to low noise (dark current at fA level), even very low UV radiation intensities can be reliably measured (with an appropriate amplifier).
SiC photodiodes can be used as unfiltered broadband detection devices or with optical filters to provide response to UVA, UVB, and UVC bands.
SiC UV Photodiode SG01L-A18 Technical Parameters:
| Model |
SG01L-A5 |
SG01L-A18 |
| Spectral Characteristics |
||
| Responsivity |
0.037A/W |
0.037A/W |
| Typical Wavelength |
331nm |
331nm |
| Wavelength Range (S=0.1*Smax) |
309-367nm |
309-367nm |
| Visible Blindness (Smax/S>405nm) |
>1010 |
>1010 |
| General Characteristics (25°C) |
||
| Effective Detection Area |
1.0mm2 |
1.0mm2 |
| Dark Current (1V Reverse Bias) |
3.3fA |
3.3fA |
| Capacitance |
250pF |
250pF |
| Short-Circuit Current (10uW/cm2 Peak Irradiance) |
Approximately 3.7nA |
Approximately 3.7nA |
| Temperature Coefficient |
<0.1%/K |
<0.1%/K |
| Ratings |
||
| Operating Temperature |
-55～+170℃ |
-55～+170℃ |
| Storage Temperature |
-55～+170℃ |
-55～+170℃ |
| Soldering Temperature (3S) |
260℃ |
260℃ |
| Reverse Voltage VRmax |
20V |
20V |
| Physical Characteristics |
T05 metal package sealed, 1 pin insulated, 1 pin grounded |
T018 metal package sealed, 1 pin insulated, 1 pin grounded |
SiC UV Photodiode SG01L-A18 Application Areas:
Mainly used for flame control (industrial boilers), water treatment (UV intensity safety), UV astronomy (array detection), projectile tracking (UV cameras), ozone and pollutant monitoring, flame sensing (fire alarm safety devices, oil droplet monitoring), testing UV intensity in sunlight (gifts, cosmetics), and UV lamp intensity testing (medical devices or disinfection efficiency verification for household disinfection cabinets), etc.
