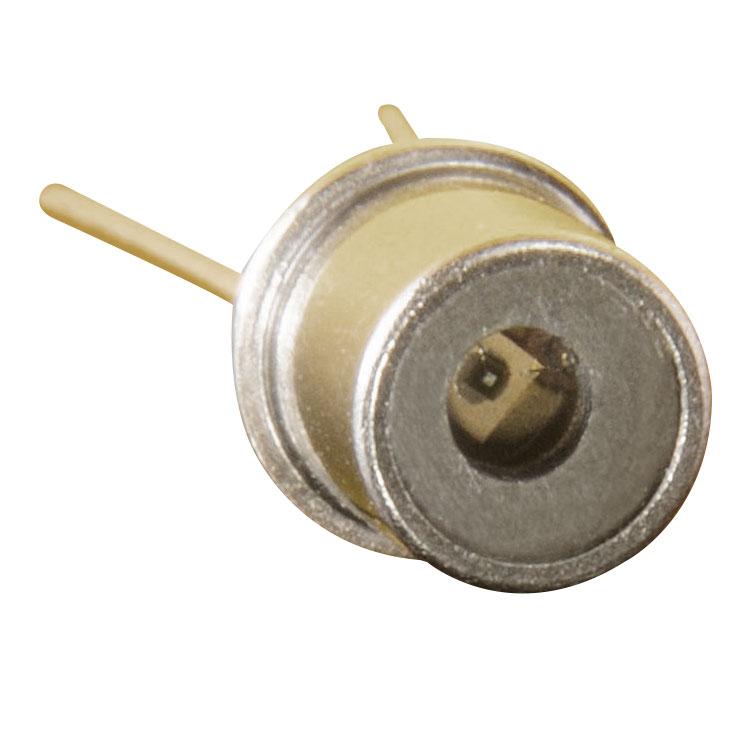

German SGLUX UV Photodiode - SG01S-C5/SG01S-C18
1. Made of silicon carbide (SiC) material
2. Only for UVC band
3. Photosensitive area: 0.06mm2
4. Generates approximately 720nA current under 10mW/cm2 peak irradiance
5. High chip stability (certified by German PTB)
6. German DVGW certification
Product Introduction
UV Photodiode SG01S-C5/SG01S-C18 Features:
1. Made of silicon carbide (SiC) material
2. Only for UVC band
3. Photosensitive area: 0.06mm2
4. Generates approximately 720nA current under 10mW/cm2 peak irradiance
5. High chip stability (certified by German PTB)
6. German DVGW certification
About Silicon Carbide (SiC) Material:
SiC has extremely special advantages: it can withstand high-intensity radiation, is almost insensitive to visible light, has low dark current, and fast response speed. These characteristics make SiC an excellent material for semiconductor UV detectors that can suppress visible light. SiC detectors can operate at temperatures up to 170°C for long periods, have a low temperature coefficient (<0.1%/K), and low noise, enabling effective monitoring of very low radiation intensities (with appropriate amplifiers).
UV Photodiode SG01S-C5/SG01S-C18 Technical Parameters:
| Model |
SG01S-C5 |
SG01S-C18 |
| Spectral Characteristics |
||
| Sensitivity |
0.120A/W |
0.120A/W |
| Typical Wavelength |
275nm |
275nm |
| Wavelength Range (S=0.1*Smax) |
225-287nm |
225-287nm |
| Visible Light Rejection Ratio (Smax/S>405nm) |
>1010 |
>1010 |
| General Characteristics (25°C) |
||
| Photosensitive Area |
0.06mm2 |
0.06mm2 |
| Dark Current (1V reverse bias) |
0.2fA |
0.2fA |
| Capacitance |
15pF |
15pF |
| Short-Circuit Current (10mW/cm2 peak irradiance) |
Approximately 720nA |
Approximately 720nA |
| Temperature Coefficient |
<0.1%/K |
<0.1%/K |
| Ratings |
||
| Operating Temperature |
-55～+170℃ |
-55～+170℃ |
| Storage Temperature |
-55～+170℃ |
-55～+170℃ |
| Soldering Temperature (3S) |
260℃ |
260℃ |
| Reverse Voltage VRmax |
20V |
20V |
| Physical Characteristics |
TO5 metal housing sealed, 1 pin insulated, 1 pin grounded |
TO18 metal housing sealed, 1 pin insulated, 1 pin grounded |
UV Photodiode SG01S-C5/SG01S-C18 Application Fields:
Mainly used for flame control (industrial boilers), water treatment (UV intensity insurance), UV astronomy (array detection), bullet tracking (UV cameras), ozone and pollutant monitoring, flame sensing (fire alarm safety devices, oil droplet monitoring), testing UV intensity in sunlight (gifts, cosmetics tools), and testing UV intensity of UV lamps (medical devices or disinfection efficiency inspection of household disinfection cabinets), etc.
