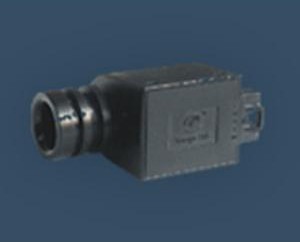

US Siargo Gas Flow Sensor Respiratory Sensor - FS6022
Flow Range: 0~250 SLPM
Flow Resistance: <0.1 cmH2O/L/sec
Response Time (95%): 8 msec
Accuracy: ± 5% achievable (< 10%)
Flow Direction: Bidirectional
Output: Linear; Analog 0.0 ~ 5.0 Vdc
Power Supply: 5.0 Vdc
Operating Temperature: 0 ~ 60 ºC
Power Consumption: < 20 mW
Fluid Resistance: Water and other liquids will not damage the sensor except for highly corrosive fluids
Product Introduction
I.US SiargoGas Flow SensorRespiratory Sensor FS6022 Series Product Description:
The FS6022 series respiratory sensor is a gas flow sensor specifically designed for hospital portable ventilators, suitable for both infant and adult ventilators. The detachable design minimizes unmeasured flow, improving accuracy. MEMS technology ensures product reliability and performance while offering you a competitive price.
II.US SiargoGas Flow SensorRespiratory Sensor FS6022 Series Specifications:
Flow Range: 0~250 SLPM
Flow Resistance: <0.1 cmH2O/L/sec
Response Time (95%): 8 msec
Accuracy: ± 5% achievable (< 10%)
Flow Direction: Bidirectional
Output: Linear; Analog 0.0 ~ 5.0 Vdc
Power Supply: 5.0 Vdc
Operating Temperature: 0 ~ 60 ºC
Power Consumption: < 20 mW
Fluid Resistance: Water and other liquids will not damage the sensor except for highly corrosive fluids
III.US SiargoGas Flow SensorRespiratory Sensor FS6022 Series Mechanical Dimensions and Electrical Interface:
| Pin |
Definition |
| 1 |
N.C. |
| 2 |
Analog Voltage Output |
| 3 |
Power (+) |
| 4 |
Ground |
| 5 |
N.C. |
