Product Introduction
1. Biomass Boiler Combustion Oxygen Detection System Product Description

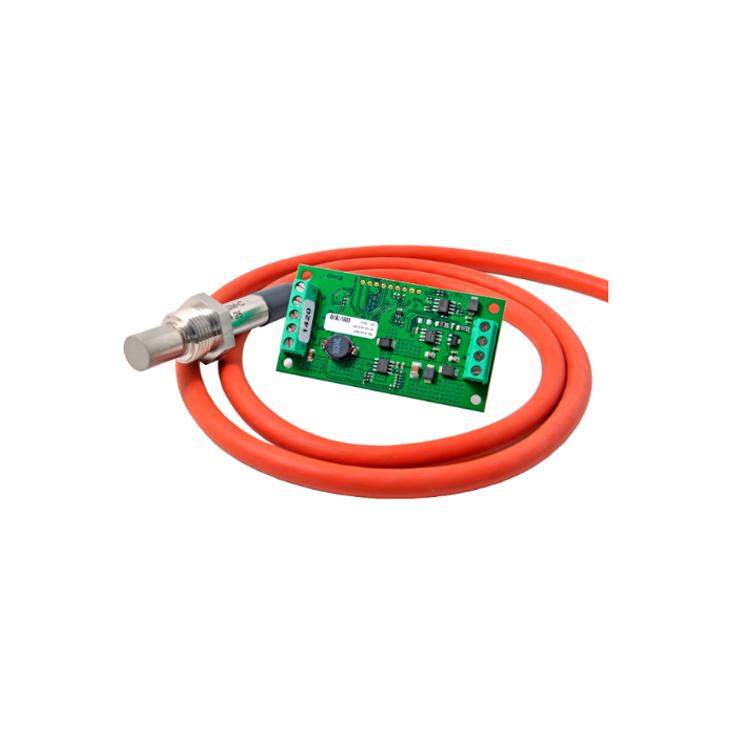

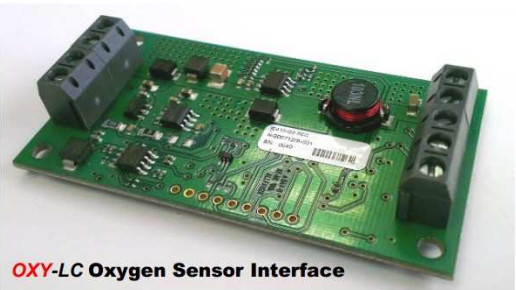

The customized biomass boiler combustion oxygen detection system is a complete solution including a zirconia sensor and control circuit.
2. Main Features of the Biomass Boiler Combustion Oxygen Detection System:
Oxygen range: 0.1-25% O2
Zirconia sensing element
Non-consumptive technology, long life
Integrated heating element
No external reference gas required
High accuracy
Linear output when used with any SST external interface board
M18 x 1.5 thread mounting
Supports RS485 Modbus RTU protocol output and analog output variables
Probe with M18 x 1.5 thread for easy connection to flue
Complete system, no need to design separate control circuit
Power supply 8 to 28 Vdc (RS485) or 20 to 28 Vdc (analog output variables)
The customized biomass boiler combustion oxygen detection system can be easily calibrated in normal atmosphere (20.7%)
