Product Introduction
UK SST Zirconia Oxygen Sensor O2 Sensor Probe Series Long Housing O2S-Series Features:
Zirconia (ZrO2) sensing element
Long life, non-consumable technology
Integrated heating element
High accuracy
Requires external interface board to operate
UK SST Zirconia Oxygen Sensor O2 Sensor Probe Series Long Housing O2S-Series Advantages:
No reference gas required
No temperature stabilization required
Available in three lengths: 220mm, 400mm, and 600mm
UK SST Zirconia Oxygen Sensor O2 Sensor Probe Series Long Housing O2S-Series Parameters:
| Heater voltage |
|
| Operating (standard response) |
4VDC ± 0.1VDC(1.7A) |
| Standby |
1.65VDC (0.7A) |
| Operating (fast response) |
4.35VDC ± 0.1VDC (1.85A)
|
| Standby |
2VDC (0.85A) |
| Pump impedance at 700°C |
< 6kΩ |
| Allowable gas temperature |
|
| Standard temperature |
-100°C ~+250°C |
| High temperature |
-100°C ~+400°C |
| Gas flow rate |
0—10 m/s |
| Repeatable allowable acceleration |
5g |
| Accidental allowable acceleration |
30g |
| Oxygen pressure range |
2mbar—3bar max |
| Accuracy |
5mbar max |
| Internal operating temperature |
700°C |
| Response time (10-90% step) |
|
| Standard response sensor |
< 15s |
| Fast response sensor |
< 4s |
| Warm-up time (before sensor operation) |
60s |
| Warm-up time (standby wake-up) |
20s |
| Output stabilization time |
180s |

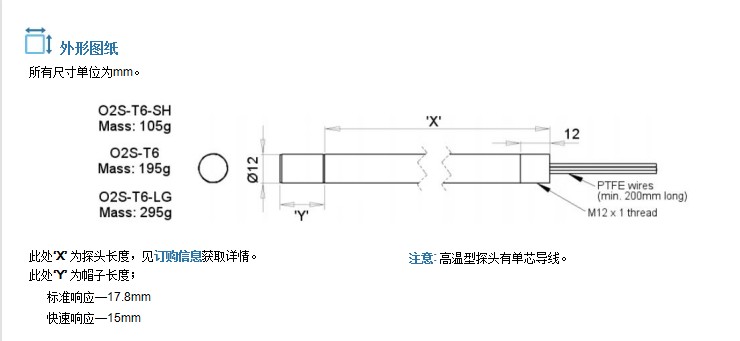

UK SST Zirconia Oxygen Sensor O2 Sensor Probe Series Long Housing O2S-Series Dimensions:

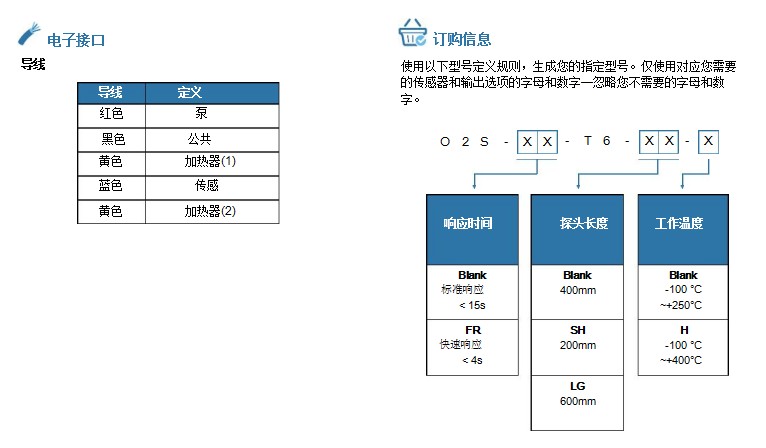

UK SST Zirconia Oxygen Sensor O2 Sensor Probe Series Long Housing O2S-Series Selection:
