UK City flammable gas sensor - Micropel 75C
Operating principle: Catalytic oxidation
Range: 0-100% LEL
Sensitivity: 31 ± 5 mV/% methane
T90 response time: <5 seconds (methane)
Operating temperature range: -20°C to +55°C
Operating humidity range: 0-90% RH non-condensing
Product Introduction
I.Micropel 75C Combustible gas sensorFeatures:
ATEX, UL, and CSA certified
Passed EN/IEC 60079-0 impact test
Improved resistance to poisoning by H2S and silicone
Reduced orientation effects
II.Micropel 75C Flammable gas sensor parameters:
| Measurement |
|
| Working principle |
Catalytic oxidation |
| Detectable gases |
Flammable gases |
| Applicable to |
Methane, ethane, propane, butane, pentane, hexane, carbon monoxide, and hydrogen |
| Not applicable |
High hydrocarbons, alcohols, ketones, estersClass, hydrogen sulfide, and other sulfur compounds |
| 范围 |
0-100% LEL |
| Sensitivity |
31 ± 5 mV/% methane |
| T90 response time |
<5 seconds (methane) |
| Poison resistance |
Resistant to H2S poisoning
|
| H2S filter life |
Typical value 1000 ppm hr |
| Linear |
Linear up to 3% methane |
| Electrical |
|
| 工作电压 |
3.30 ± 0.02 VDC |
| Detector operating current |
78 ± 6 mA |
| Max power consumption |
295 mW |
| 分辨率 |
1% LEL |
| Mechanical |
|
| Weight |
2 g (nominal l) |
| Directional sensitivity |
None |
| Environmental |
|
| Operating temperature range |
-20°C to +55°C |
| Operating pressure range |
1 atm ± 20% |
| Operating humidity range |
0-90% RH non-condensing |
| Lifespan |
|
| Long-term span drift |
<5% signal/month |
| Long-term zero drift |
<5% LEL methane /month |
| Recommended storage temperature |
0°C to 20°C |
| Storage life |
6 months storage in sealed container |
| Warranty |
12 months from shipment |
III.Micropel 75C Combustible gas sensorRelative sensitivity:
Important note
The following response data does not constitute part of the product specification and is for reference only. For the most accurate measurement results, the gas being detected should be used to calibrate the instrument.Gas calibrates the instrument.

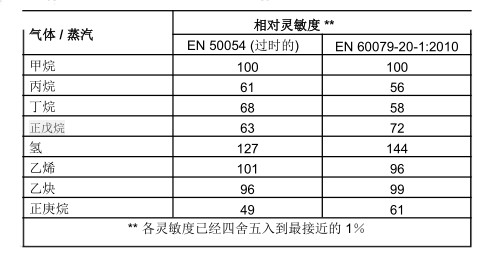

The table below shows the response change of MICROpeL when exposed to a range of gases and vapors at the same %LEL concentration. Data is obtained experimentally and is expressed relative to the methane signal( =100 ) indicated. Testing was completed with 2.5% vol. CH4 (based on the now obsolete EN50054 LEL value, 50% LEL CH4).
Based on the LEL values specified in EN 50054 (now obsolete) and EN60079-20-1:2010, the relevant response data is shown in the table below.
IV.Micropel 75C Flammable gas sensor certifications:
Certification body: SIRA Certification Services
Test standard: EN 60079-0:2012 Explosive atmospheres. Part 0: General requirements for equipment
EN 60079-1:2014 Explosive atmospheres. Equipment protection by flameproof enclosures "D"
EN 60079-11:20012 Explosive atmospheres, Part 11: Protection by intrinsic safety "i "
EN 60079-31:20014 Explosive atmospheres. Equipment dust ignition protection by enclosure "t" type "t"
