Product Introduction
Japan NEMOTO Combustible Gas Sensor NAP-57A Description:
NAP-57A is an integrated contact combustion type combustible gas sensor with strong resistance to organic silicon. It has been widely selected by customers in fields such as fixed alarms and concentration meters. This sensor itself is not explosion-proof; it is recommended to place it in an explosion-proof certified container when in use.
Japan NEMOTO Combustible Gas Sensor NAP-57A Features:
Good stability
Excellent repeatability and consistency
Good linearity corresponding to different gas concentrations.
Excellent resistance to toxic gases
Can be flexibly applied in combustible gas alarms and combustible gas concentration detectors
Japan NEMOTO Combustible Gas Sensor NAP-57A Applications:
Can be used in both combustible gas alarms and combustible gas detectors
Japan NEMOTO Combustible Gas Sensor NAP-57A Parameters:
| Supply voltage |
AC 3.3V (50－60Hz) DC 3.3V
|
| Operating ambient temperature and humidity range
|
|
| Ambient temperature |
－40～+80℃ |
| Relative humidity |
99%RH (non-condensing) |
| Storage temperature and humidity range
|
|
| Ambient temperature |
－40～+80℃ |
| Relative humidity |
99%RH (non-condensing) |

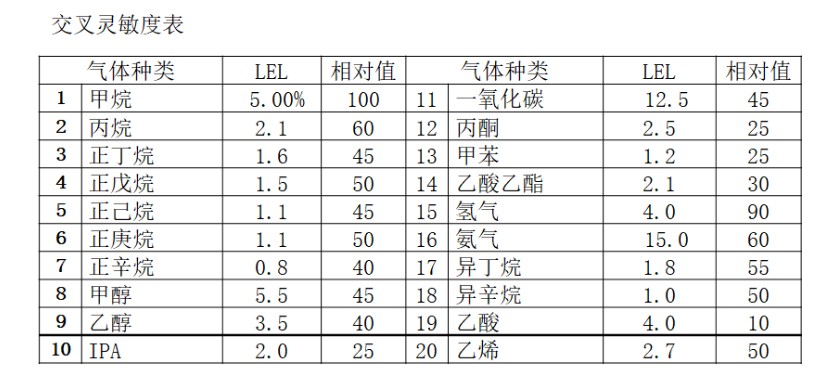

Japan NEMOTO Combustible Gas Sensor NAP-57A Cross Sensitivity Table:

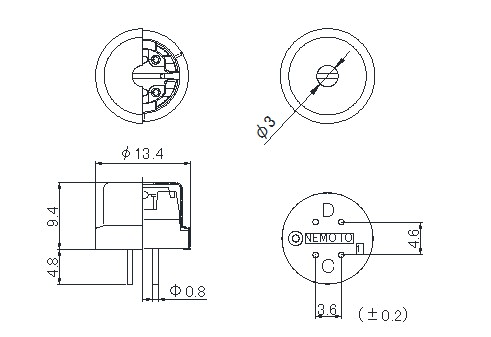

Japan NEMOTO Combustible Gas Sensor NAP-57A Dimensions:
