Product Introduction
Japan NEMOTO Combustible Gas SensorNCP-170 Description:
The NCP-170 is a paired catalytic combustion type combustible gas sensor, widely selected by customers in fields such as fixed alarms and concentration meters. However, this sensor itself does not have explosion-proof performance; it is recommended to place it in an explosion-proof certified enclosure when in use.
Japan NEMOTO Combustible Gas SensorNCP-170 Parameters:
| Rated |
|
| Voltage |
2.0v |
| Current |
160 - 190 mA (2. 0VTime) |
| Operating Ambient Temperature |
-20 - +60C |
| Operating Ambient Humidity |
95%RHBelow(No Condensation) |
| Measurement Concentration Range |
0One100%LEL，0One50%LEL (Good Linearity) |
| Output Value in Standard Gas Concentration and Clean Air at Room Temperature |
|
| Methane10%LELSensitivity |
13 - 18 mV |
| In Clean Air |
30 - +30 mV |

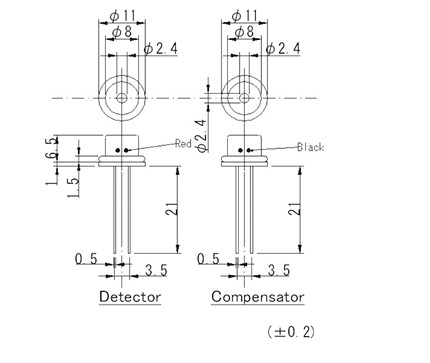

Japan NEMOTO Combustible Gas SensorNCP-170 Dimensions:
