Product Introduction
Japan KOMYO Catalytic Combustion Type Sensor FC-10 Features:

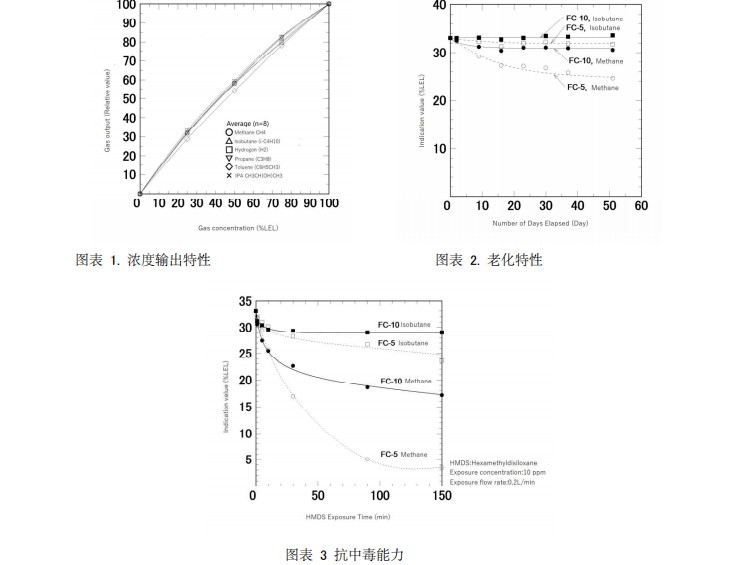

The concentration output is always linear, resulting in high display accuracy. [Chart 1]
Compared to the previous model (FC-5), the FC-10 has excellent long-term stability, resulting in longer maintenance intervals and lower operating costs. [Chart 2]
Compared to the previous model (FC-5), the FC-10 has excellent resistance to poisoning. [Chart 3]
Japan KOMYO Catalytic Combustion Type Sensor FC-10 Parameters:
| Name |
Catalytic Combustion Type Sensor |
| Model |
FC-10 |
| Detection Gas |
Combustible gases in air (leak detection) Note: Not for continuous monitoring |
| Detection Range |
0～100％LEL |
| Display Accuracy |
±5% of full scale(immediately after calibration) |
| Operating Conditions |
Temperature: -10°C to 40°C, Humidity: 95%RHor below 95%RH (non-condensing) |
| Power Supplies |
Rated Voltage Power Supply 2.4V |
Japan KOMYO Catalytic Combustion Type Sensor FC-10 Table:
