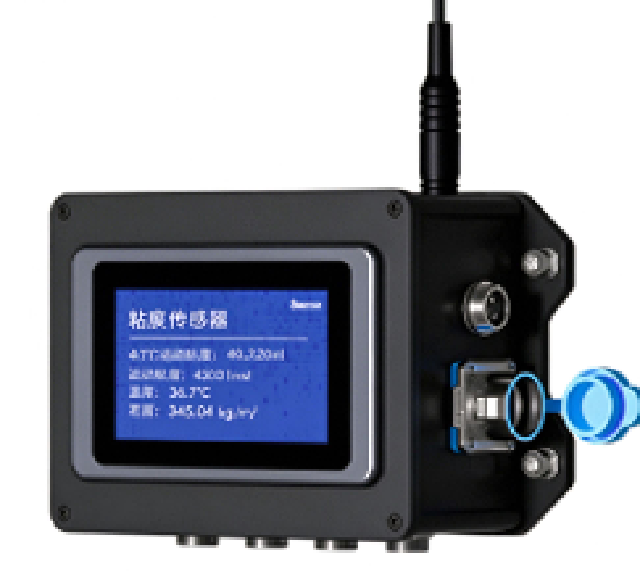

Distributed Online Oil Monitoring System - SKA IOL-GAT
Specifications and Parameters
| Technical Specifications | |
|---|---|
| Screen | 4.3 inches (480x272) |
| Material | Alloy material |
| 防护等级 | IP65 |
| Power supply form | AC220V/DC24V |
| Input port | 1-4 channels (optional) |
| Wired output port | Ethernet port (optional USB port, used for updating programs) |
| Wireless output port | 4G/WIFI (optional) |
Product Introduction
SKA IOL-GAT Series
Distributed Online Oil Monitoring System Solution
SKA IOL-GATDistributed online oil monitoring system solution, composed of a data collector (hereinafter referred to as "collection terminal") and a data transmission module (including vibration sensor/pressure sensor/flow meter/wear/viscosity/moisture/dielectric constant/temperature/density/cleanliness sensor NAS grade)/local data display and remote cloud platform display. The system can use 485/CAN/fiber optic signal cables or 4G/WiFi/5G wireless transmission modes to achieve the transmission of unit operation data from the on-site data collection module to the data storage server. Achieve data collection, data analysis and diagnosis, and perform preliminary data analysis and diagnosis.
Portable and compact design • Configure indicators on demand • Multi-point networking deployment and control
Main Application Areas
- Power Generation — Monitors turbine and generator oil to prevent unexpected failures and extend equipment life.
- Manufacturing — Tracks hydraulic and lubricating oil conditions in production lines to reduce downtime.
- Marine — Ensures reliable operation of ship engines and hydraulic systems through continuous oil analysis.
- Mining — Detects contamination and wear in heavy machinery oil, improving maintenance scheduling.
- Oil & Gas — Provides real-time oil monitoring for compressors and pumps in harsh environments.
