Dynamic Image Particle Sensor - SKA IFD-3
| Item | Parameter |
|---|---|
| Optional indicators: saturation (water activity, aw), water content (ppm) | Lens pixels: 5 million |
| Imaging time: as fast as 2s, automatically outputs according to detection conditions | Judgment output: as fast as 30s, automatically outputs detection results according to detection conditions |
| Light compensation: auto exposure, auto linear compensation | Adaptable oil sample viscosity: 1-1500cp |
| Particle detection range: 1–800 μm | |
| Sensitivity: 1 μm (ISO4402) or 4 μm(c) (GB/T18854, ISO11171) | |
| Contamination detection accuracy: ±1 contamination level (typical value) | Number of particle channels: 8 |
Product Introduction

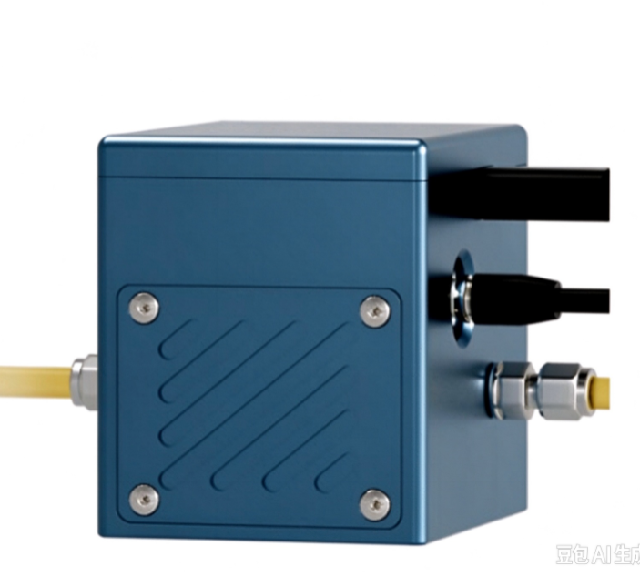

SKA IFD-3The dynamic image particle sensor adopts the industry's first Linux-architecture high-definition imaging system, integrating high-speed detection, intelligent analysis, and compact design. Equipped with a dynamic high-precision lens and a high-definition macro imaging module, it can complete real-time dynamic image capture in as fast as 2 seconds while oil is flowing, accurately detecting multi-dimensional indicators such as particle size distribution, quantity concentration, and moisture contamination. Through the built-in AI analysis model, the system can intelligently classify particle morphology characteristics according to standards such as ISO/NAS1638 and ASTM, effectively distinguishing particle types such as cutting wear, fatigue wear, dust, and contamination.
-
Compact size：Industry's smallest size, compatible with installation and integration of various equipment.
-
High resolution：5-megapixel resolution, high-definition visibility of contamination morphology in oil.
-
High efficiency：Dynamic image data can be output in as fast as 2s, and a detection result can be output in as fast as 30s.
-
AI light compensation：Automatic supplementary lighting analysis for dark oil products, no fear of harsh working conditions
-
Multi-interface：HDMI high-definition multimedia interface(Outputs a high-definition video stream containing information such as real-time images, particle count, bubble count, contamination level, moisture, and particle counts of different wear types) andRS485 industrial bus(Outputs digital signals containing information such as images, particle count, bubble count, contamination level, moisture, and particle counts of different wear types)Dual interface, compatible with mainstream detection systems。
Main Application Areas
- Hydraulic System Monitoring — Real-time detection of particle contamination in hydraulic oil to prevent component wear and system failures.
- Turbine Oil Analysis — Continuous monitoring of turbine oil cleanliness to ensure reliable power generation and extend equipment life.
- Gearbox Oil Testing — Detection of wear particles and moisture in gearbox oil to optimize maintenance schedules and reduce downtime.
- Compressor Oil Monitoring — Assessment of compressor oil condition to prevent corrosion and ensure efficient operation.
- Industrial Lubrication Management — Comprehensive oil analysis for various industrial machinery to maintain lubrication quality and reduce costs.
