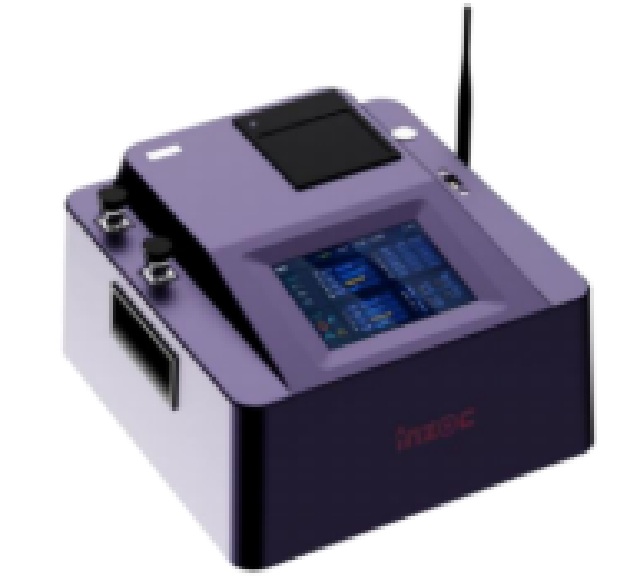

Portable Contamination Detector - SKA IBJ-2J
Specifications and Parameters
| Detection Indicators (Optional) | Parameter | Remarks |
|---|---|---|
| Particle analysis range | 1-400um | 1um |
| Applicable viscosity | 1-500cSt | Optional pressure chamber required |
| Judgment standard | GJB-420A、GJB-420B、NAS1638、ISO4406（GB/T14039）、SAE4059E | Other standards optional |
| Grade error | ≤ Level 5: ±1 level (NAS1638) ≥ Level 5: ±2 levels (NAS1638) |
/ |
| Sensitivity | 1um or 4um | / |
| Particle counting error | ≤10% | / |
| Particle counting repeatability | ≤3% | / |
Product Introduction
SKA IBJ-2J Series
Portable Contamination Detector
SKA IBJ-2J SeriesSuitable for detecting the size and quantity of single solid particles in liquids, intelligently classifying oil contamination particles, and providing evaluation grades according to preset standards. The unique design can effectively eliminate the influence of bubbles and moisture in oil on detection results. The instrument can be widely used in aviation, aerospace, machinery and other fields for solid particle contamination detection of hydraulic oil, lubricating oil, engine oil, aviation kerosene, water-based hydraulic oil and other oils, as well as detection of insoluble particles in organic liquids and polymer solutions
Oil aging assessment • Contamination particle analysis • Moisture Content Analysis
Main Application Areas
- Aviation & Aerospace — Detection of solid particle contamination in aviation hydraulic oil, aviation kerosene, and lubricants to ensure flight safety and component reliability.
- Machinery & Manufacturing — Monitoring contamination levels in hydraulic oil, lubricating oil, and engine oil used in industrial machinery to prevent wear and extend equipment life.
- Power Generation — Testing of turbine oil and hydraulic fluids in power plants to maintain system cleanliness and operational efficiency.
- Marine & Shipping — Analysis of marine engine oil and hydraulic systems to ensure compliance with contamination standards and reduce maintenance costs.
- Chemical & Polymer Processing — Detection of insoluble particles in organic liquids and polymer solutions for quality control and process optimization.
