Dynamic Image Particle Sensor - SKA IFD-3H
Specifications and Parameters
| Item | Parameter |
|---|---|
| Monitoring indicators | Particle Counting: ISO4406/NAS 1638/ASTM D6786/User-defined Total ferromagnetic concentration/ppm ferromagnetic particle count and size distribution; Intelligent ferrography: wear particle classification and concentration of each type of wear particle, size distribution, morphology; Temperature: real-time liquid temperature |
| Particle detection range | 1～800μm |
| Number of particle channels | 8 |
| Sensitivity | 1μm (ISO4402) or 4μm (c) (GB/T18854, ISO11171) |
| Wear identification | Fatigue wear, sliding wear, cutting wear, fibers, impurities |
| Lens pixels | 5 million pixels Light compensation: automatic exposure, automatic linear compensation Imaging time: 2-5s, automatically output according to detection conditions |
| Particle counting standards | GJB420B/SAE4059F-CPC/ISO4406/GB/T14039/GJB420A、NAS1638/SAE4059F |
Product Introduction
Visualized real-time monitoring: "A picture is worth a thousand words"

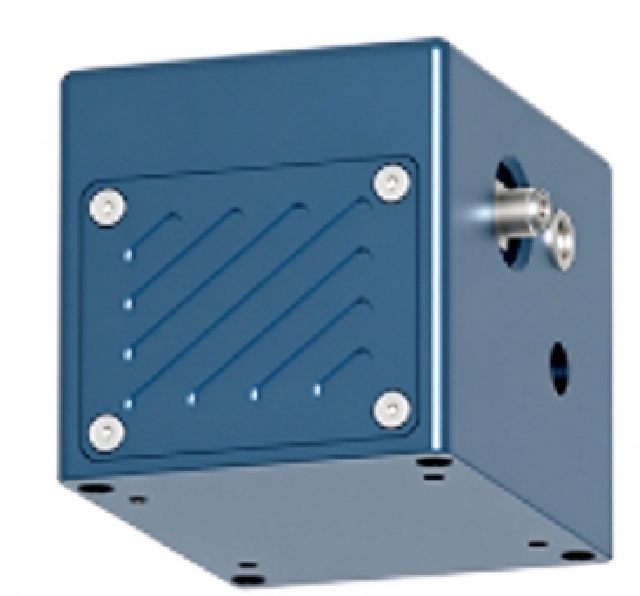

SKA IFD-3HThe dynamic image particle sensor adopts the industry's first Linux-architecture high-definition imaging system, integrating high-speed detection, intelligent analysis, and compact design. It is equipped with a dynamic high-precision lens and a high-definition macro imaging module, and can complete real-time dynamic image capture in as fast as 2 seconds while oil is flowing, accurately detecting multi-dimensional indicators such as particle size distribution, quantity concentration, and moisture contamination.
Through the built-in AI analysis model, the system can intelligently classify particle morphology characteristics according to ISO/NAS1638, ASTM, and other standards, effectively distinguishing particle types such as cutting wear, fatigue wear, dust, and contamination.
Specifications and Parameters
| Item | Parameter |
|---|---|
| Monitoring indicators | Particle Counting: ISO4406/NAS 1638/ASTM D6786/User-defined Total ferromagnetic concentration/ppm ferromagnetic particle count and size distribution; Intelligent ferrography: wear particle classification and concentration of each type of wear particle, size distribution, morphology; Temperature: real-time liquid temperature |
| Particle detection range | 1～800μm |
| Number of particle channels | 8 |
| Sensitivity | 1μm (ISO4402) or 4μm (c) (GB/T18854, ISO11171) |
| Wear identification | Fatigue wear, sliding wear, cutting wear, fibers, impurities |
| Lens pixels | 5 million pixels Light compensation: automatic exposure, automatic linear compensation Imaging time: 2-5s, automatically output according to detection conditions |
| Particle counting standards | GJB420B/SAE4059F-CPC/ISO4406/GB/T14039/GJB420A、NAS1638/SAE4059F |
Main Application Areas
- Hydraulic Systems — Monitors particle contamination and wear debris in hydraulic oil to prevent component damage and extend system life.
- Gearboxes — Detects wear particles and ferrous debris in gearbox oil, enabling early fault diagnosis and predictive maintenance.
- Turbines — Tracks oil cleanliness and wear particle trends in turbine lubrication systems to ensure reliable operation.
- Compressors — Provides real-time oil condition monitoring for compressors, helping avoid unexpected downtime and costly repairs.
- Industrial Machinery — Ideal for various industrial machinery to monitor oil health, optimize maintenance schedules, and reduce operating costs.
