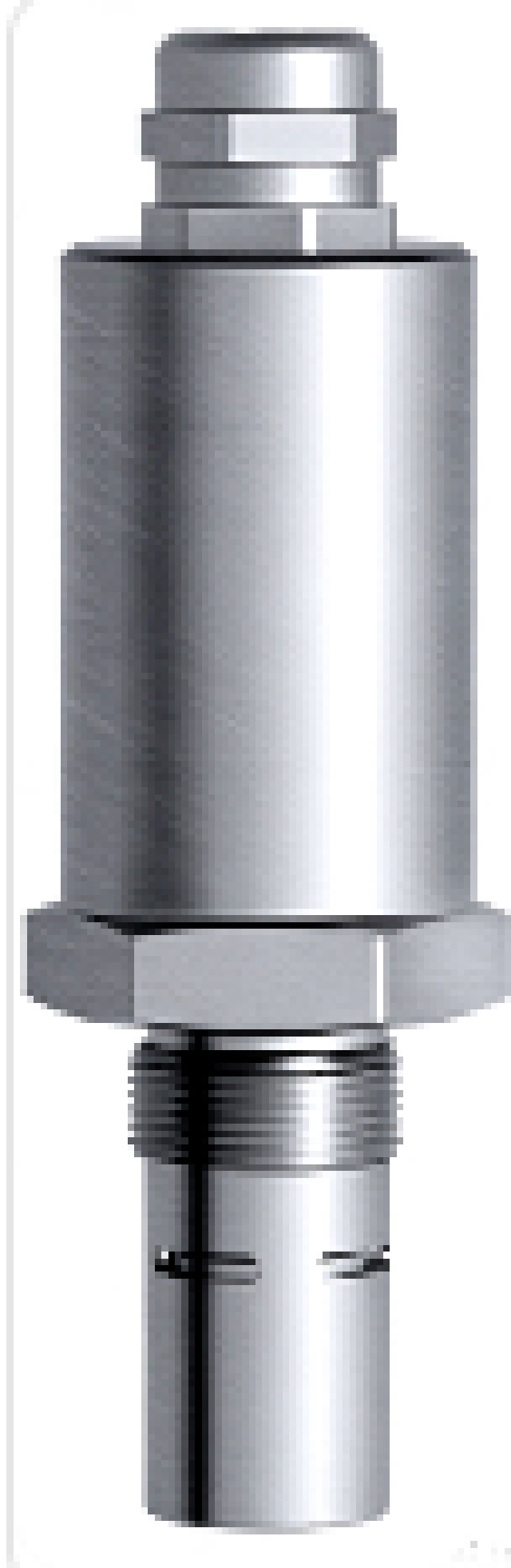

Intelligent Sensor for Oil Water Content - SKA IFW-2B
Specifications and Parameters
| Monitoring indicators | Measuring range | Accuracy | 分辨率 |
|---|---|---|---|
| Moisture Content (Free Water) Selectable Range |
0.03-5% 0.03-20% 0.03 - 100% |
±0.3 (fixed error) | 0.01% |
| Temperature | -35-85℃ | 0.5℃ or ±3% | 0.1℃ |
| Oil Curve Model | - | Supports Modification | - |
| Curve Types | - | Can Be Pre-installed | - |
Product Introduction
SKA IFW-2B Series
Water Content Sensor
SKA IFW-2BIt is an intelligent sensor specially designed for online measurement of water content in oil. Its unique measurement technology is extremely sensitive to changes in the water content of oil, with a measurement rate as high as milliseconds. It provides accurate measurement under various harsh conditions and can continuously and accurately monitor free water and emulsified water in oil online in real time. It provides all-round real-time online moisture monitoring for oil, offering a scientific and powerful guarantee for the stable operation of your equipment. Using a brand-new circuit design and model algorithm, it fully considers the influence of temperature, flow rate, etc. during online monitoring, and adopts a software-hardware parallel compensation method. Even if a trace amount of water enters the oil, it can be detected by precision sensing components, converted by the back-end digital circuit, and output in a timely manner, making it possible to warn of equipment failure as promptly as possible.
Millisecond-level Measurement Speed • Unafraid of Harsh Working Conditions • Real-time Online Monitoring
Main Application Areas
- Hydraulic Systems — Monitors water contamination in hydraulic oil to prevent corrosion, cavitation, and component wear, ensuring system reliability.
- Turbine Lubrication — Detects water ingress in turbine oil to avoid oxidation, sludge formation, and bearing damage, extending equipment life.
- Transformer Oil — Measures moisture in insulating oil to maintain dielectric strength and prevent electrical breakdown in power transformers.
- Compressor Systems — Tracks water content in compressor lubricants to avoid emulsification, reduce wear, and maintain efficient operation.
- Marine Engines — Provides real-time water monitoring in marine engine oils to prevent corrosion and ensure compliance with emission standards.
