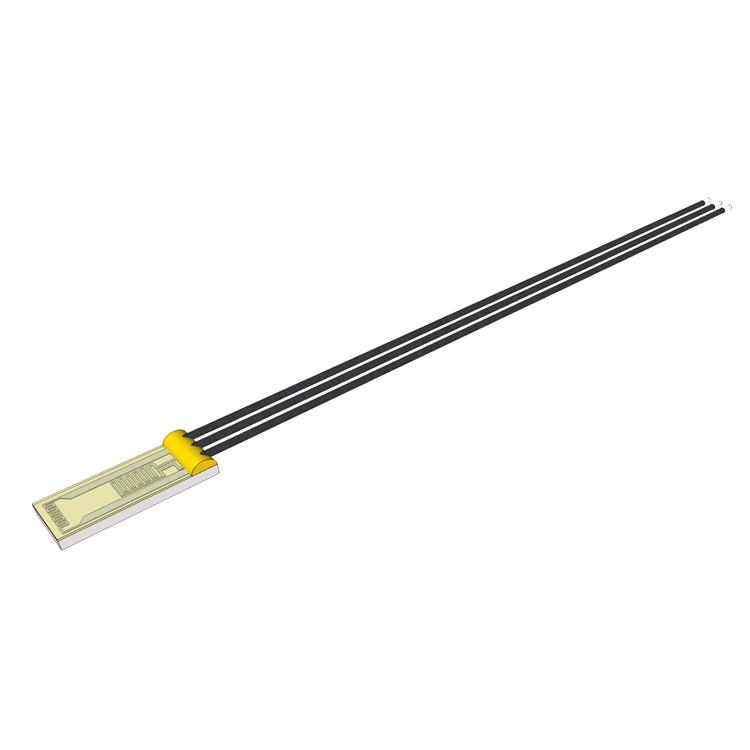

Swiss IST Thermal Mass Flow SensorFS7 Suitable for a variety of gas flow applications, temperature resistance up to 150 °C
Swiss IST Thermal Mass Flow SensorFS7 Description:
The IST AG FS7 flow sensor is the successor to the FS5 flow sensor, featuring a symmetrical heater design with enhanced sensitivity. The FS7 flow sensor is suitable for gas applications and offers excellent long-term stability. The FS7 sensor has a low thermal mass, resulting in a short response time. In addition, the standard FS7 sensor is equipped with a housing, making it easy to use in various applications.
Swiss IST Thermal Mass Flow SensorFS7 Features:
Easy to adapt for different applications and housings
Excellent long-term stability
Simple signal processing
Simple calibration
Stable platinum technology
Excellent repeatability
Customizable according to customer requirements
Symmetrical heater design and higher sensitivity
Easy integration into various applications and packages
Swiss IST Thermal Mass Flow SensorFS7 Parameters:
| Dimensions (L x W x H / H2 in mm) |
6.9 x 2.4 x 0.20 / 0.60 Ø 6.0 (±0.1) mm, LH = 14 (±0.2) mm (full dimensions in application manual) |
| Measurement range |
0 m/s to 100 m/s |
| Response sensitivity |
0.01 m/s |
| Measurement accuracy |
< 3% of true value (depending on circuit and calibration) |
| Response time t63 |
~200 ms (from 0 to 10000 sccm) |
| Operating temperature range |
-20 °C to +150 °C |
| Temperature sensitivity |
< 0.1 %/K (depending on circuit design) |
| Connection method |
3 pins, AWG 30/7, stranded, PTFE insulation |
| Heater |
RH(0 °C) = 45 Ω ±1 % |
| Reference device |
Rs(0 °C) = 1200 Ω ±1 % |
| Voltage range (nominal) |
2 V to 5 V (at ∆ T = 30 K (0 m/s ≤ vgas ≤ 100 m/s) |
| Maximum heater voltage |
3 V (at 0 m/s) |
| Other structures |
Molded plastic housing |

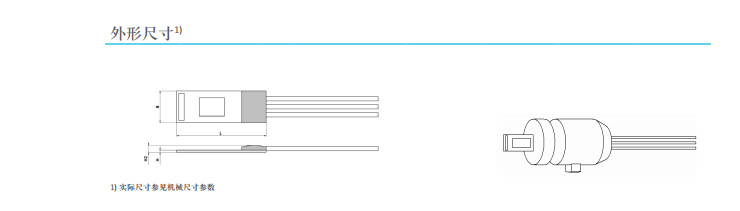

Swiss IST Thermal Mass Flow SensorFS7 Dimensions:
