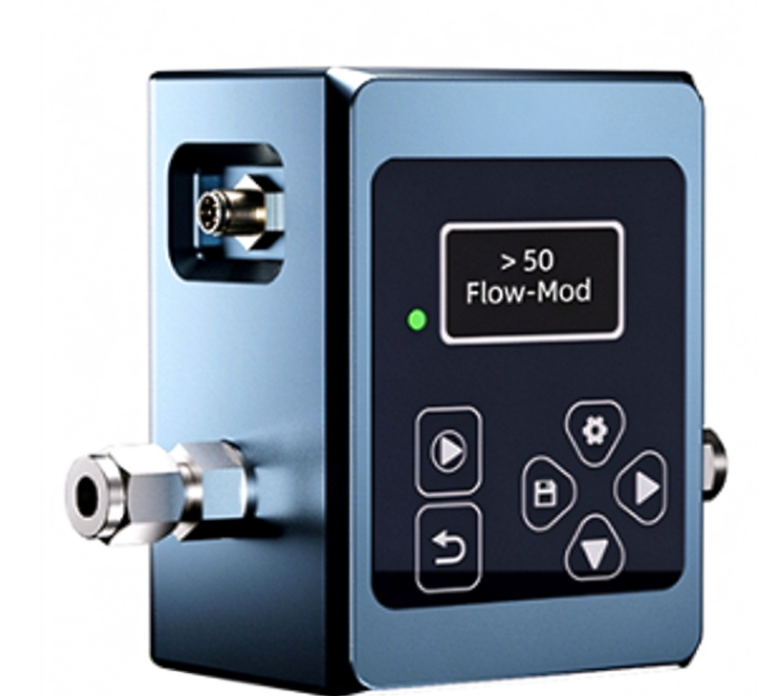

Liquid Particle Counter - SKA IFJ-3
Specifications and Parameters
| Monitoring indicators | 1-400um | ||
|---|---|---|---|
| Number of Channels | 8 | Accuracy | Calibration Standards |
| 1μm、2μm、5μm 10μm、15μm、25μm 50μm、100μm、4μm(c) 46μm、6μm(c)、10μm(c) 14μm(c)、21μm(c) 38μm(c)、70μm(c) |
±1 level (typical value) | ISO4402 ISO11171 |
|
| Sensitivity | 1μm (ISO4402) or 4μm(c) (GB/T18854, ISO11171) |
Product Introduction
SKA IFJ-3The liquid particle counter adopts single laser light-blocking counting technology, featuring fast detection speed, strong anti-interference ability, high precision, and good repeatability. It can accurately detect the size and quantity distribution of particles in the tested oil sample.
Combined with the Fourier waveform analysis model, it can greatly improve the monitoring accuracy of small particles and high-cleanliness oil products, and can automatically correct invalid data and interference data.
"Eliminate the false and retain the true." Using the built-in bubble elimination structure, it eliminates bubble interference during liquid injection and operation, accurately quantifies impurities, and ensures no blockage risk in the cold plate microchannels.
Main Application Areas
- Hydraulic System Maintenance — Monitor particle contamination in hydraulic oil to prevent wear and extend equipment life.
- Lubrication Oil Analysis — Assess oil cleanliness in engines, gearboxes, and turbines for predictive maintenance.
- Power Plant Oil Monitoring — Ensure transformer oil and turbine oil meet ISO cleanliness standards for reliable operation.
- Manufacturing Quality Control — Verify particle counts in precision cleaning and assembly processes.
- Aerospace Fluid Testing — Analyze hydraulic fluids and fuels for particulate contamination in aerospace applications.
