Product Introduction

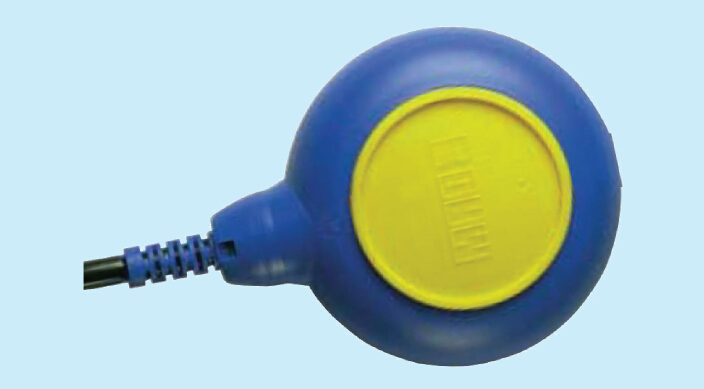

1. Mac3 SpA Level Switch Applications and Features
Used to start/stop water pumps, water valves, or alarms
The shape has no edge structure, suitable for sewage treatment applications. The specially designed double-layer protective sealing structure ensures reliability under any conditions and long-term use.
2. Mac3 SpA Level Switch Technical Specifications
Micro switch electrical characteristics: 20(8) A, 250VAC
Certification: ENEC/CE
External marking: 10(8)A, 250VAC
Operating temperature: 0~50°C
Storage and transport temperature: -20°C~80°C
Protection: IP68
Switch angle: ±45°
Dimensions: 106 x 154 x 54mm
Weight: 234g
Volume: 384cm³
Depth: 1 bar (10m)
Float encapsulation material: Non-toxic polypropylene (PP)
Color additive: Non-toxic
Functional grade: Drinking water standard I / II
3. Mac3 SpA Level Switch Selection Table
Model Description
MPM0306GB0C SPDT, 3m cable
MPM0506GB0C SPDT, 5m cable
MPM1006GB0C SPDT, 10m cable
MPM1506GB0C SPDT, 15m cable
