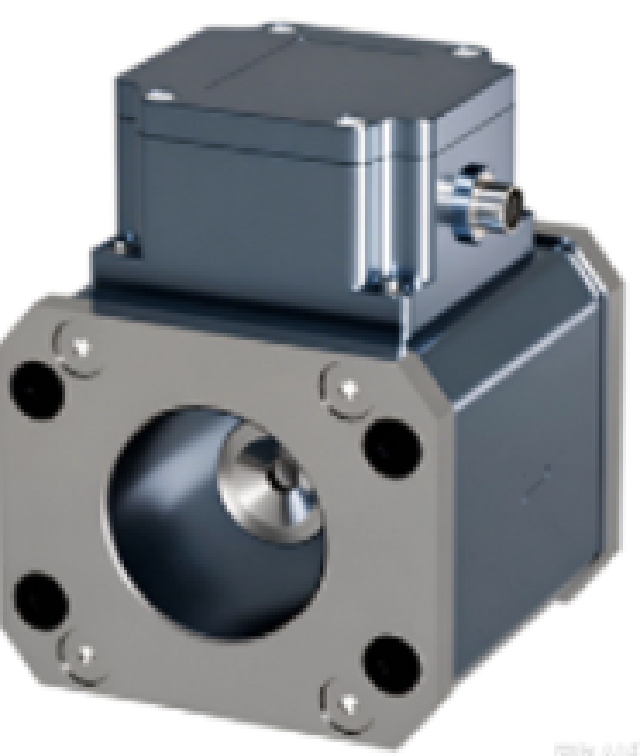

Main Line Multifunctional Oil Sensor - SKA ISL-Z2
Specifications and Parameters
| Monitoring indicators | Measuring range | Accuracy | 分辨率 |
|---|---|---|---|
| Dynamic Viscosity | 10-1500cP | ±3% or 8cP | 0.01cP |
| Saturation | 0.03-1Aw | ±0.03 Aw | 0.001Aw |
| Moisture Content (Dissolved Water) | 1-10000ppm (model calibration) | ±10% or 50ppm | 1ppm |
| Water Content (Free Water) | 0.03 - 100% (range optional) | ±0.3 (fixed error) | 0.01% |
| Oil Quality | 1 - 100 | ±3% | 0.01 |
| Density | 600-1500 kg/m³ | ±3% | 0.01kg/m3 |
| Temperature | -35-85℃ | 0.5℃ or ±3% | 0.1℃ |
Product Introduction
SKA ISL-Z2 Series
Main Line Multi-Parameter Sensor (Split Type)
SKA ISL-Z2 SeriesThe main line multifunctional oil sensor adopts patented multifunctional integrated detection technology, combined with industry-leading back-end data processing modules, forming a large-range, high-precision, multifunctional comprehensive oil detection sensor. It reduces industry challenges such as on-site installation space for online oil monitoring, and is a representative product of large-range multi-parameter in the industry. It can be adapted to flange conversion installation and embedded installation of different standards, suitable for integrated installation in wind turbine gearboxes, power systems, diesel engines, marine diesel engines and other systems, and can complete the detection of viscosity, density, dielectric constant, moisture content, temperature, and wear particles in one go.
Large Range and Multifunctional • Multi-data fusion technology • Convenient Integrated Installation
Main Application Areas
- Wind Turbine Gearboxes — Monitors oil condition in wind turbine gearboxes to prevent wear and extend equipment life.
- Power Systems — Ensures oil quality in power generation and transmission systems for reliable operation.
- Diesel Engines — Tracks oil parameters in diesel engines to optimize performance and maintenance.
- Marine Diesel Engines — Provides real-time oil monitoring for marine diesel engines, enhancing safety and efficiency.
