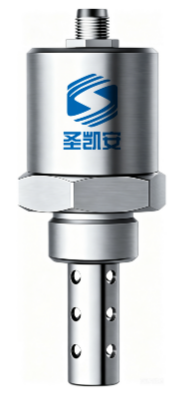

Oil moisture sensor - water-in-oil sensor - oil moisture sensor manufacturer - SKAA2
Measurement indicators:
Temperature: -20~125℃, resolution 0.1℃, measurement accuracy ±0.3℃ (at 25℃)
Water activity: 0~1 aw, resolution 0.001aw, measurement accuracy varies slightly by range, see table for details
Moisture content: 0~1000ppm, resolution 1ppm, measurement accuracy ±10%
Note: Moisture content range of 100~2000ppm is customizable; the JWA2 oil micro-water sensor is calibrated by default at the factory according to 48# or 68# hydraulic oil (custom oil sample calibration available).
Product Introduction

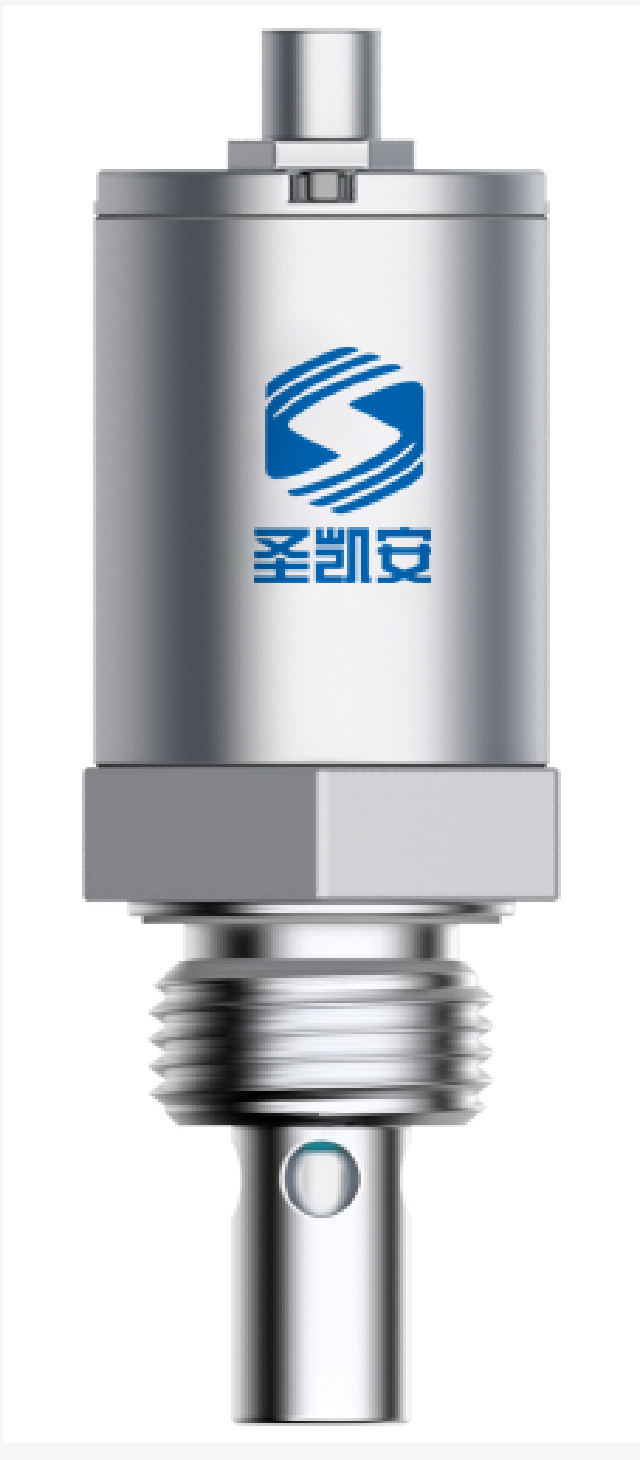

The Shenzhen SKAA2 intelligent oil micro-water sensor from Shenzhen Shengkaian uses advanced polymer materials as the humidity-sensitive conversion element. Through its unique water absorption and desorption process, it achieves dynamic equilibrium monitoring of moisture in oil. This oil moisture sensor utilizes the influence of moisture on the dielectric constant of polymer materials to precisely capture changes in capacitance, thereby outputting the corresponding humidity variation and providing a reliable basis for real-time monitoring of moisture content in oil.
The SKAA2 oil micro-water sensor uses polymer material as the humidity-sensitive conversion element, achieving dynamic moisture equilibrium through water absorption and desorption processes. The dielectric constant of water is much larger than that of pure polymer materials, and the dielectric constant of the polymer material after water absorption changes significantly due to the variation in adsorbed moisture, thereby causing changes in capacitance value. The oil micro-water sensor outputs the corresponding humidity variation.
High-precision measurement:Adopts a unique polymer humidity-sensitive element combined with high-precision temperature compensation technology to ensure the accuracy and stability of measurement results, with measurement accuracy reaching the industry-leading level.
Synchronous detection of three indicators:Real-time detection of temperature, water activity, and moisture content in oil, providing comprehensive oil moisture status information to meet the needs of various application scenarios.
Wide range of applications:Suitable for various oils and harsh working conditions, such as hydraulic systems, gearboxes, diesel generator sets, etc., demonstrating strong adaptability and versatility.
Smart communication interface:Equipped with a serial communication interface and supporting the RS485 MODBUS RTU protocol, facilitating data transmission and remote monitoring with host computers or control systems for intelligent management.
Reliable and durable:The sensor adopts a 316 stainless steel probe and IP65 protection rating design, capable of withstanding high-pressure and high-speed fluid impact, ensuring long-term stable operation and reducing maintenance costs.
Diverse outputs:Provides digital signal and analog current output options for easy integration with other systems
Real-time monitoring:Capable of real-time automatic detection of temperature, water activity, and moisture content in oil, providing immediate data support.
Online oil monitoring sensorWidely used in various equipment systems, including hydraulic systems, gearboxes, diesel generator sets, turbine units, and air compressors. Its applicable oil range is also very broad, covering hydraulic oil, gear oil, transformer oil, turbine oil, diesel engine oil, aviation fuel, kerosene, and gasoline, meeting the needs of different scenarios.
Main Application Areas
- Hydraulic Systems — Real-time monitoring of water content in hydraulic oil to prevent corrosion, cavitation, and component wear.
- Turbine and Lubrication Oils — Continuous online detection of moisture ingress in turbine and lubricating oils for power generation and heavy machinery.
- Industrial Gearboxes — Early warning of water contamination in gearbox oil to avoid premature failure and extend service life.
- Oil Storage and Transportation — Monitoring moisture levels during storage and transfer of oils to maintain quality and prevent degradation.
- Predictive Maintenance — Integration into condition monitoring systems for proactive maintenance scheduling based on oil moisture trends.
