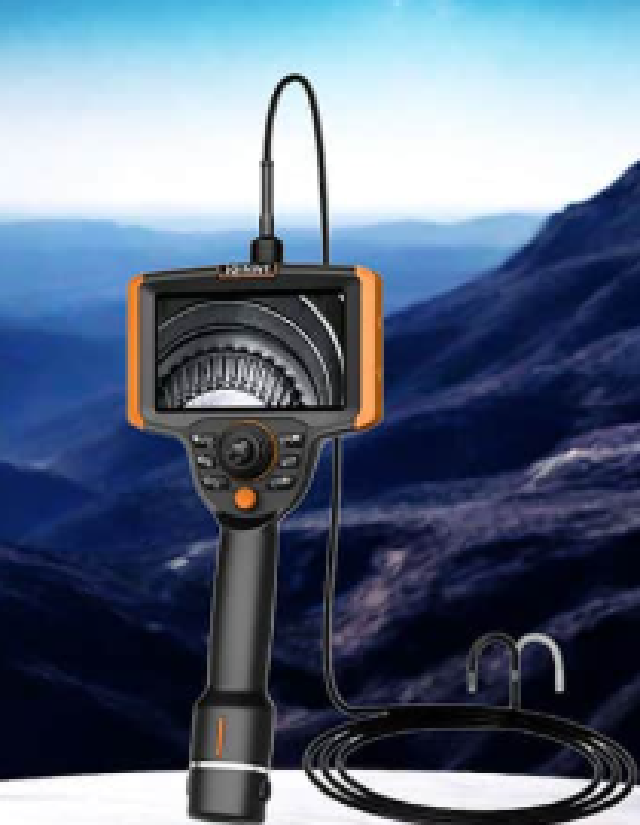

Q Series High-Definition Industrial Endoscope - Portable Endoscope Device - Endoscope Camera Mechanical 360° Steering - SKAQ Series

Shengkaian SKA JW-Q SeriesIntroduction to the Multifunctional Endoscope Probe

1. 5.5-inch high-brightness OLED touch screen ------ clearly visible even under strong outdoor light, with lossless presentation of details in dark areas
2. Equipped with RK3568 high-performance processor ---- millisecond-level system response, smooth 4K video recording, and instant annotation generation
3. Dual joystick/360° mechanical steering -------- one-handed blind operation accurately locks onto defects, reducing wear on pipes caused by repeated insertion and withdrawal
4. Plug-in key-lock detachment, replace 1.0-6mm lenses ----- 3-second quick change, one main unit adapts to more working conditions, with costs reduced by 60%
5. Detect and record instantly! Add annotations to discovered defects with one click, no paper or pen needed on site, export when finished, reducing your documentation organization time by 50%
6. Plug-in quick-release black technology, switch from a 1.0mm fine needle probe to a 6.0mm large-diameter probe in 3 seconds. No need to return to the factory for replacement, no need to purchase an additional main unit, maximizing the cost-effectiveness of your equipment budget

I. Shengkaian SKA JW-Q SeriesMultifunctional endoscope probeOverview

Shengkaian SKA JW-Q SeriesThe multifunctional endoscope targets engine cylinders, turbine blades, and complex pipeline dead corners, making 'invisible hidden dangers' impossible to hide under the 5.5-inch high-definition giant screen. The intelligent platform equipped with the RK3568 high-performance processor offers zero-delay control; the unique dual joystick follows your movements 360°, allowing precise locking with one hand. It also supports quick replacement of 1.0-6mm full-spec lenses, so one device covers the maintenance needs of the entire plant, greatly reducing overall procurement costs.SKA JW-Q SeriesThe portable endoscope device system has multiple built-in custom color modes and a dual-joystick design, aiming to provide high-quality inspection images and a convenient operating experience.

II. Technical Advantages of Shengkaian SKA JW-Q Series High-Definition Industrial Endoscope

Uses imported sapphire glass-encapsulated lenses and high-brightness imported quartz fiber light-guiding probes (illuminance up to 150000lux), ensuring better image results. 5.5-inch industrial touch screen. RK3568 adopts an advanced three-level superscalar processing architecture, paired with high-performance ARM Cortex-A76 and Cortex-A55 cores, capable of providing excellent computing and graphics processing capabilities. The image brightness of defective parts is enhanced, and even the smallest defects are clearly distinguishable under sunlight
