Portable Oil Tester - SKA IBF Series
Specifications and Parameters
| Detection Indicators (Optional) | Measuring range | Accuracy | 分辨率 |
|---|---|---|---|
| Viscosity (Outputs viscosity at 40 degrees) |
10-1500cP (Oil products above No. 150 require a pressurized chamber) |
±3% or 8cP | 0.01cP |
| Saturation (Water Activity) | 0.03-1aw | ±0.03 aw | 0.001aw |
| Moisture Content (Dissolved Water) | 1-10000ppm (model calibration) | ±10% or 50ppm (No error setting below 50ppm) |
1ppm |
| Water Content (Free Water) | 0.03 - 10% | ±0.3 (fixed error) | 0.01% |
| Oil Quality | 1 - 100 | ±3% | 0.01 |
| Density | 600-1500 kg/m³ | ±3% | 0.01kg/m3 |
Product Introduction
SKA IBF Series

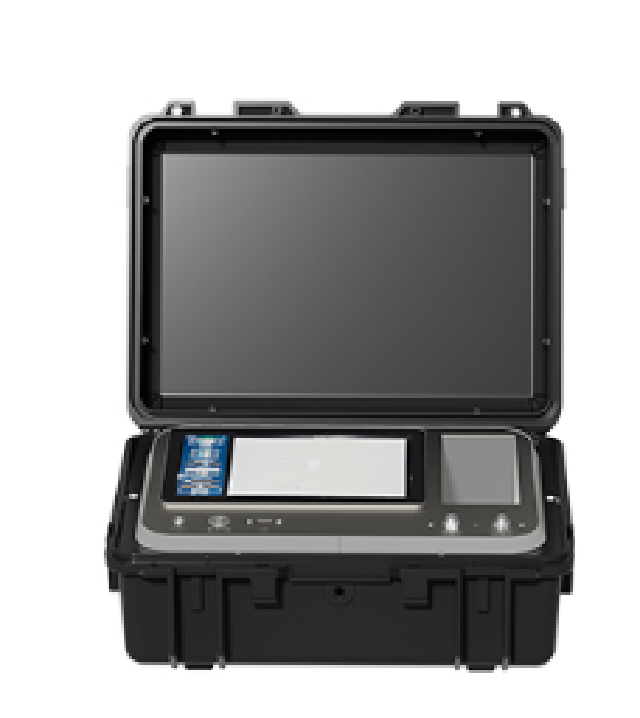

Portable Oil Tester
SKA IBF SeriesThe portable oil analyzer adopts advanced sensor detection technology to comprehensively detect various aging indicators in oil. It can quickly and digitally present indicators such as contamination level classification, wear classification, viscosity, and moisture. Its unique design can effectively eliminate the influence of bubbles and moisture in oil on detection results. The instrument can be widely used in aerospace, electric power, petrochemical, transportation ports, metallurgical machinery and other fields to detect hydraulic oil, lubricating oil, transformer oil (insulating oil), turbine oil (turbine oil), gear oil, engine oil, aviation kerosene, water-based hydraulic oil and other oils, comprehensively monitoring the operating health of equipment.
Oil Life Assessment • Wear Condition Analysis • Moisture Content Analysis
Main Application Areas
- Aerospace — Testing hydraulic fluids, engine oils, and aviation kerosene for contamination and aging to ensure flight safety.
- Power Generation — Monitoring transformer oil, turbine oil, and insulating oil quality to prevent equipment failure and extend service life.
- Petrochemical — Analyzing lubricants, hydraulic oils, and process fluids for water content, viscosity, and wear particles.
- Transportation & Ports — On-site oil testing for ships, cranes, and port machinery to reduce downtime and maintenance costs.
- Metallurgy & Machinery — Evaluating gear oils, hydraulic fluids, and coolants in heavy machinery to maintain operational reliability.
