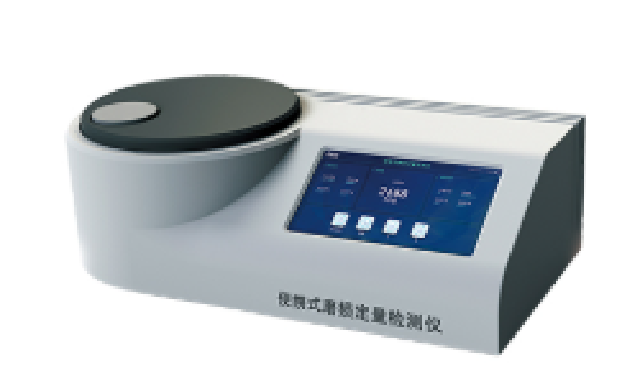

Portable Oil Wear Quantitative Detector (Ferrous Particle Analyzer) - SKA IBQ
Applicable conditions / Working Condition
| Storage temperature | Power Supply | Weight | Working environment temperature | Serial port | Display screen | Working Environment |
|---|---|---|---|---|---|---|
| -20-50℃ | AC220 | 4KG | 10℃-40℃ | USB | 7-inch | No condensation |
PQ mode / PQ pattern
| Repeatability | 分辨率 | Test time | Measurable minimum value | Wear particle detection range | Measurement Range |
|---|---|---|---|---|---|
| 1PQ or 1% | 1PQ | 5 seconds | 5PQ | 1um | 0-15000PQ |
Product Introduction
SKA IBQ series
Portable Oil Wear Quantitative Detector (Ferrous Particle Analyzer)
SKA IBQThe ferrous particle analyzer is based on the principle of electromagnetic induction. A sensitive electromagnetic coil is designed inside the device. When magnetic particles pass through the coil, the ferromagnetic particles in the oil will change the fixed magnetic field of the sensor. Based on the data changes and the algorithm model of Zhihuochai, the relationship between magnetic field changes and magnetic particle content can be established for direct reading. The product is extremely sensitive to abnormal wear particles mixed in the oil and can quickly and effectively judge the equipment wear of large industrial on-site equipment. It is suitable for hydraulic oil, gear oil, grease, and other industrial oils.
Application areas:Steel, petrochemical, shield tunneling, electric power, wind power, large equipment
Applicable oil types:Hydraulic oil, turbine oil, diesel engine oil, gear oil
检测指标：Wear quantitative analysis (PPM\PQ), viscosity, moisture content, density, oil quality
Main Application Areas
- Hydraulic Systems — Monitors ferrous wear particles in hydraulic oil to prevent component failure and extend equipment life.
- Gearboxes — Detects abnormal wear in gear oil, enabling timely maintenance and reducing downtime.
- Lubricating Grease — Analyzes ferrous particle content in grease to assess machinery health and lubrication effectiveness.
- Industrial Machinery — Provides rapid on-site wear assessment for large industrial equipment, ensuring operational reliability.
