Product Introduction

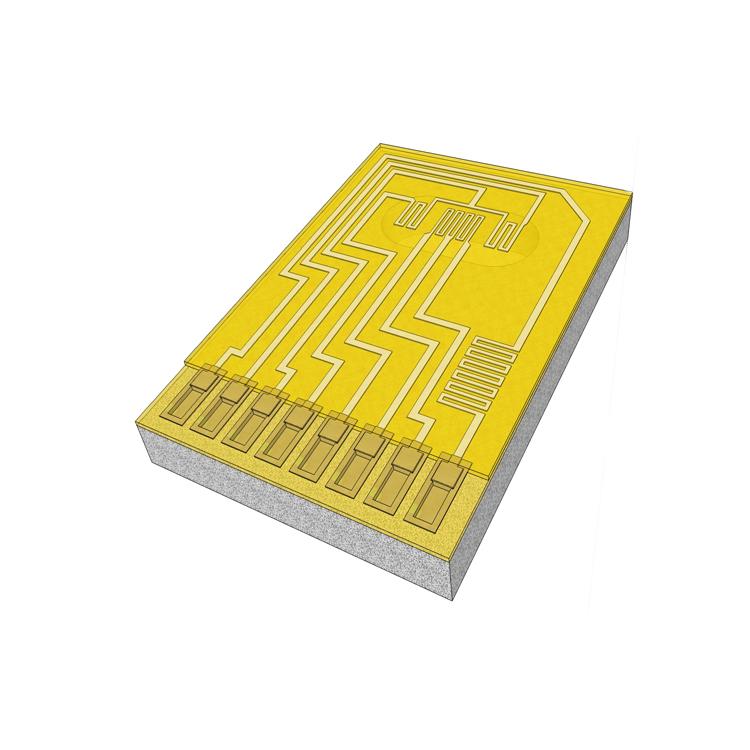

Swiss IST thermal mass flow sensor MFS02 features:
Extremely high resolution in CTA mode for high flow and fast response applications
Suitable for measuring very low flow and leak detection applications via bridge circuits
Flow direction measurement
Swiss IST thermal mass flow sensor MFS02 parameters:
| Parameters |
|
| Dimensions (L / L2 x W x H / H2 in mm) |
|
| Chip
|
5.0 x 3.4 x 0.5
|
| PCB Standard |
38.2 x 10.8 x 1.0 / 2.0 |
| PCB Bare |
34.2 / 37.4 x 10.8 x 1.0 / 2.0 |
| Measurement Range |
0 m/s to 1.5 m/s (full bridge mode) 0 ml/min to 100 ml/min (full bridge mode) 0 m/s to 150 m/s (CTA mode) 0 l/min to 10 l/min (CTA mode) |
| Minimum Measurement Range |
0 ml/min to 1 ml/min |
| Response Sensitivity |
0.0003 m/s (20 microliter/min) |
| Measurement Accuracy |
< 2% of true value (depending on circuit and calibration) |
| Response Time t63 |
< 10 ms |
| Temperature Range (Chip) |
-40 °C to +160 °C |
| Temperature Range (Gas) |
-40 °C to +80 °C (up to +80 °C below chip temperature) |
| Temperature Sensitivity |
< 0.1% / K (depending on circuit design) |
| Connection Method |
Pad Connection |

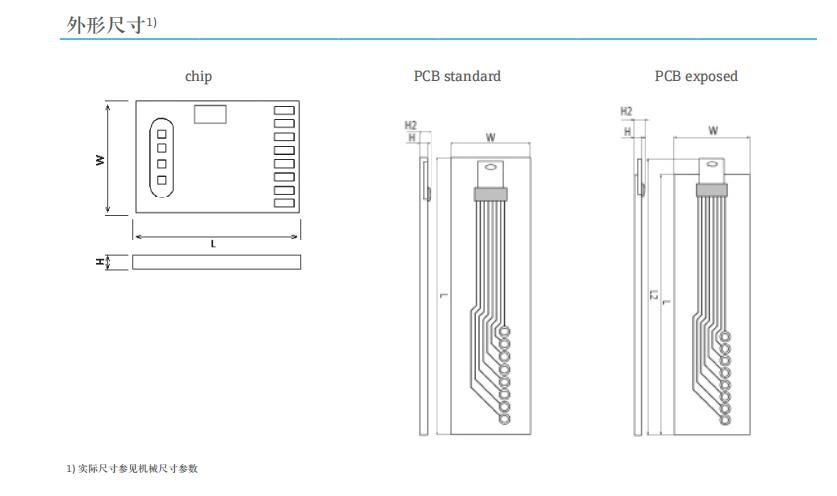

Swiss IST Thermal Mass Flow Sensor MFS02 Dimensions:
